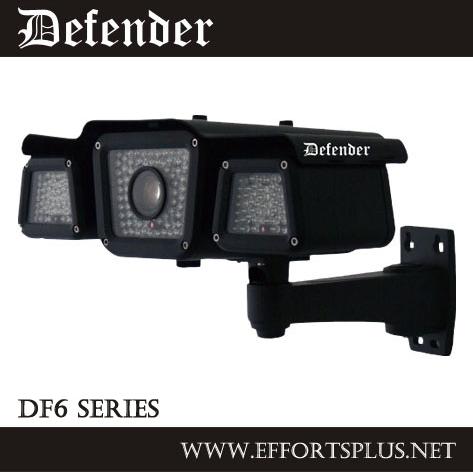

Surveillance Camera [defender - Df465e] 650tvl, 1/3

* Image device: 1/3-inch 960H CCD
* Effective pixels:PAL: 1020 (H) x 596 (V)
o NTSC: 1020 (H) x 508 (V)
* Signal system: PAL/NTSC
* Scanning system: 2:1 interlace
* Horizontal resolution: 650TVL
* Minimum illumination: 0 lux (IR-on)
* S/N ratio: �52dB
* Video output: 1.0Vp-p/75�©
* Vertical frequencies:
o PAL: 50Hz
o NTSC: 60Hz
* Horizontal frequencies:PAL: 15.625KHz
o NTSC: 15.734KHz
* Clock frequencies:PAL: 36MHz
o NTSC: 36MHz
* Gamma correction: 0.45
* Auto gain control (AGC): on
* Backlight compensation (BLC): off
* White balance: ATW
* Electronic shutter: 1/50 (1/60) to 1/100,000 seconds
* Lens type: 3.5 to 8mm vari-focal IR lens
* Viewing angle: 33 to 69�° horizontal
* IR LED: 80 pieces
* IR effective range: 35 to 40m
* Filter: removable IR cut filter
* Degree of protection: IP66
* Power supply: 12V DC
* Power consumption: 650mA
* Storage temperatures: -30 to 60�°C
* Operating temperatures: -30 to 40�°C
* Weight: 1,920g (4.23lb)
* Dimensions: 325 x 198 x 127mm or 12.80 x 7.79 x 5.0 inches
