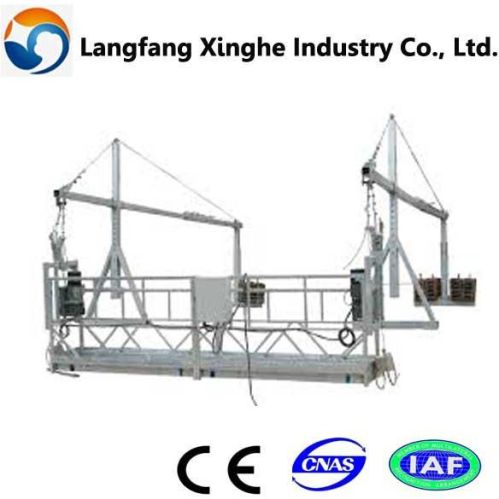

Suspended Access Platform Building Glass Cleaning

₹ 1.54 Lakh / 2500 2500 Set

MOQ1set Set(s)
Warrantythe whole machinery for one year
Actuationelectric motor
Working platform finishedhot galvanizing, aluminum alloy
Max lifting height100m
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 1980

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Max lifting height100m
CertificationISO9000,CE
Size 3*2000mm/2500mm *690mm *1180mm
Rated Loading630kg, 800kg
Actuationelectric motor
Working platform finishedhot galvanizing, aluminum alloy
Warrantythe whole machinery for one year
Wire rope diameter8.3mm 8.6mm 9.1mm
Hoist Voltage380v,415v,220v(50/60 Hz)
Hoist motor 2*1.5kw, 2*2.0kw

We offer building glass cleaning. Finished hot galvanizing aluminum alloy
rated load 630kg 800 kg
lifting speed 9~11mmin 7~9mmin
platform dimension l*w*h(mm) (3*2000mm)*690mm*1150mm(3*2500mm)*690mm*1150mm
lifting height 100m
diameter of wire rope 8.3mm8.6mm
power 2*1.5kw2*2.0kw
voltage 380v415v
rated stretch of the front beam: 1500mm
rated suspending load: 8kn*2
the distance between suspending beam and ground: 1200mm
the max distance between front support and the rear one: 4500mm
adjustment range of height :1150~1800mm
arm can be stretched out and drawn back
it can be used for parapet and complicated building in different height.
Based on the special working environmen, we can supply customized platform

Additional Information

Payment Terms L/C, T/TWestern Union
Port of DispatchTianjin
Packaging DetailsStandard exporting package by plywood case,then steel pallet for container
Delivery Time7~10 days after receiving the deposit
