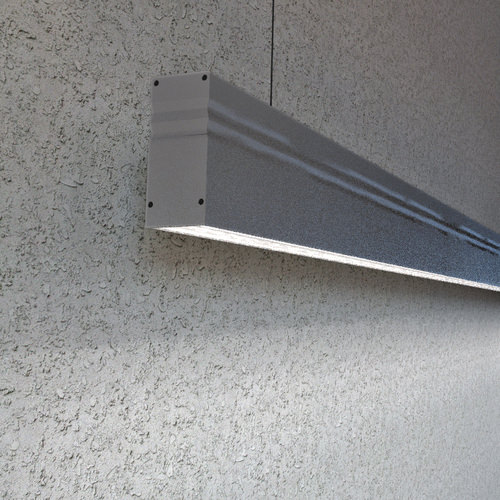

Suspension Mount LitePlus SU-M Power LED Linear Lighting System

Comi lighting's suspension lite-plus™ su-m led linear lighting fixture with a wide luminous surface provides excellent and even illumiation on all surfaces.the frosted lens diffuses the led image and softens the light output.available in warm white 30000k, neutral white 4000k and cool white 600k temperatures. Suspended with aircraft cable for flexible installations.suitable for task lighting, general illumination and many other applications.
● mount type:suspension mount
● operating voltage: 12v or 24 vdc;
● cri: 65+ standard,70-80 medium, 80-93 high (varies with cri level and color temperature selection);
● multiple lens: frosted or round lens for options;
● strict binning controls provide consistent led color and quality;
● smooth and continuous elv dimming with electronic low voltage dimmer.
● various customization options:led type, led number per length, lumens output, cri level,length of lighting fixture, led color and etc.
Product name liteplus™ su-m led linear lighting fixture
working voltage:
24vdc(12v is also available)
power:
depends on the light strip selection
light source:
3528505028355730 smd led diode
led number:
120ledsm, or 240ledsm ,360ledsm (for 3528smd only)
cri:
ra>65 (ra>70,80 or 90 are available upon request)
view angle:
30°
average led lifespan:
45,000hours
working temperature:
-30℃~60℃
humidity:
0~90% relative humidity
dimension(l×w×h):
1000×35×67.7mm (customized lengths available)
ip rating:
ip20, non-waterproof, indoor or dry locations use only
