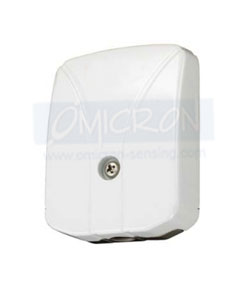

SV100 : Seismic Sensor

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The SV100 range of Seismic sensors is designed to detect specific vibrations arising from attempts to penetrate high value storage units, protecting them against intrusion. The SV100 model is a universal seismic sensor which can be used to protect Vaults, Doors, fixed ATMs, Safes and other solid structures. The SV100 series offers several unique features that reduce installation time including integrated EOL resistors,a built-in diagnostic tool and the smallest footprint available on market

View More Details

Send Enquiry

Company Information

Omicron Sensing Pvt Ltd

Kalbadevi, Mumbai, Maharashtra

View Number

Member Since 10 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Power Requirement
Supply Voltage	:	8 – 16 VDC, nominal 12 VDC
Current Consumption	:	Typical 3 mA @ 12 VDC

Sensitivity
Adjustable Sensitivity	:	4 levels by DIP Switches
ATMs / Vault Selection	:	by DIP switch
Delayed Triggering	:	N/A
Reduced Sensitivity Input	:	For maintenance & Service: Active low (<1.5 VDC)
Detection Radius	:	5m
Alarm algorithm	:	Highly sensitive to all known attacks while rejecting known false alarm sources by innovative filters and firmware

Alarm Outputs
Solid State Relay (Change Over)	:	30 VDC / 100 mA; Type C
Open Collector	:	Approx. 2.5 secs
Alarm Hold Time	:	Approx. 2.5 secs

Sabotage Protection
Pry-off and Cover Switch	:	30 VDC / 100 mA
Low Supply Voltage Alarm *	:	< 7 VDC
Temperature Alarm *	:	+85°C ± 5°C
Internal Functional Alarm*	:	Stainless steel drill shield
