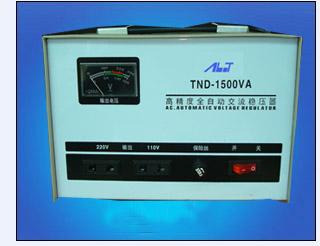

Svc Single Phase Fully Automatic High Precision AC Voltage Stabilizer Regulator

Specifications
1) voltage stabilizer
2) ccc,iso9001,iso14001
3) 1 year warranty
4) free maintenance
svc single- phase high accuracy full automatic ac voltage stabilizer series is the key series of our products, it is made of contact type self-couping voltage regulator. Servo motor, automatic control circuit and so on, when the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carbon brush of the self-coupling voltage regulator, so as to regulate the output voltage to the rating and to obtain the steady state
having the advantages such as wide varieties, complete specifications, beautiful appearance. Etc. and the characteristic such as undistorted waveform, high efficiency, reliable performance, long term operation, etc, and also being provided with the protective functions such as time delay, over-voltage, etc, the series of stabilizer of the general type are the ideal voltage stabilizing sources which can be widely applied to any occasions requiring power to assure the normal operation of your power driven equipment.
Input voltage(v):160-25070-130
output voltage(v):220±3%110±3%
phase: single phase
frequency: 50hz60hz
response time: less than 1second against 10% input voltage deviation
opposite degree of humidity: less than 95%
waveform distorttion: no-lack distortion in waveform
environment temperature: -5°c-+40°c
efficiency: >90%
working mode: continuous
functional protection: with overvoltage, undervoltage protection, lack of phase, overload, short circuit protection and time delay function
insulation resistance: comply with most international standards
model: svc0.5kv, svc1kv, svc1.5kv, svc2kv, svc3kv, svc5kv,svc7.5kv,svc10kv,svc15kv,svc20kv,svc30kv,
weight(kg): 4.6, 6.5, 7, 10.5, 13.6, 29,40, 48,75.5,80,87
