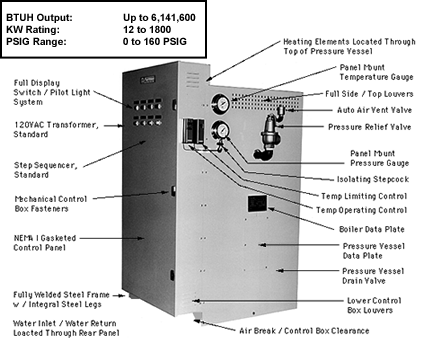

Fully insulated ASME coded & stamped Carbon Steel pressure vessel, Code H, 160 PSIG
National Board registered
ASME safety relief valve set @ 150 PSIG
NPT inletoutlet fittings up to 3-12"; flanged inletoutlet fittings 4" and over
Incoloy sheathed immersion element complete with epoxy seals
NEMA 1 epoxy finished control panel and heater enclosure
Drain valve at lowest practical vessel location
Temperature and pressure gauges panel mounted
Operating temperature range 160° to 250°F
Onoff staging up to 90 amp rating
Proportional temperature controller for units over 95 amps with complete step controller
Manual reset high limit, 250° F max
Electronic low water cut off with automatic reset standard
120V control circuit complete with onoff switch and indicating pilot light
Sub-circuit power fusing, class "J"
Industrial rated magnetic contactors
