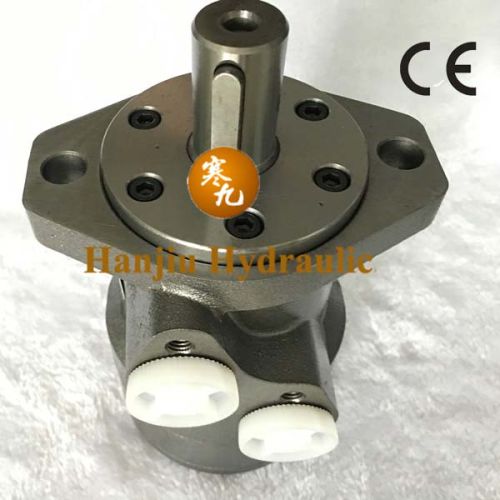

Swapper Parts BMR Hydraulic Orbit Motors

Hanjiu hydraulic orbit motor bm2 :
advantage:
1. Small, lightweight, smaller than other orbit motor of same torque
2. Wide speed range, non-grade adjustment of speed, minimum steady speed is 15rpm, easy and convenient to be equipped with, low cost
3. Used in series and in parallel way of a hydraulic system
main function features:
1. Shaft groove distributes flow, simple and compact structure, high accuracy of flow distributing
2. Stator-rotor in toothed shape, high mechanical efficiency, longer working lifetime under high pressure
3. Touching-ball bearing of coupled-angle, bear higher loading in both radial and axial direction, small friction force, high mechani-cal efficiency.
Hydraulic motor application:
hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter, etc.
Technical specification
type om2
125 om2
160 om2
200 om2
250 om2
315
om2
400 om2
500 om2
630
displacement (ccrev) 124.1 164.7 200 248.3 319.2 400 518 666
max torque
(n.m) cont 215 285 347 385 495 477 772 993
int 268 355 459 470 568 620 1054 1355
max pressure
(mpa) cont 14 14 14 12.5 12.5 10 12.5 12.5
int 17 17 17 14 14 12.5 16 16
max speed rate(rpm) cont 400 310 250 200 150 125 160 125
int 500 400 310 250 200 150 200 160
weight(kg) 7.2 7.8 8.1 8.4 9.0 9.5 17.5 18.5
