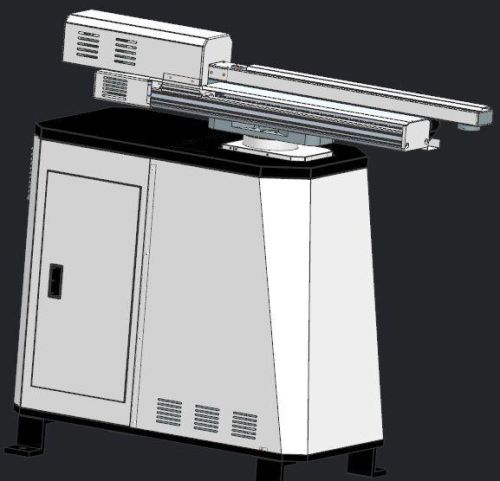

Swing Type Robot Arm.

Swing type robot arm.
1. Max load: 10kg radius: 1250mm
2. Repeated positioning accuracy: ±0.1mm
3. installation way: floor type
4. y axis up-and-down stroke: 420mm max speed: 500mms
5. s axis rotation stroke: +-270° max speed: 156°s
6. x axis advance and retreat stroke: 600mm max speed:1.56ms
7. x axis rotation stroke: 360° max speed: 360°s
8. weight: 330kg environment: 0-45 ℃
9. Rh: 30%~95% noncondensing
10. Color: primary (others available)
control system：
1. Dedicated industrial robot control system ptp point-to-point control mode
2. 8-inch color touch screen handheld controller, multi-language user interface, easy to operate, convenient and user-friendly.
3. Open teaching methods, easier and intuitive robot programming, without plc engineers, end-users can also be programmed in the production site.
4. Support multiple product program storage to connect with any punch press, interlock function
5. Coordination among multiple robots of continuous punch press adopts can bus communication. The response speed of manipulator is faster and the efficiency is higher. Simple connection requires no complex I o signal connection
6. With usb port, u disk can be used to upgrade the program and manage and share parameters.
7. Position of mobile arm can be quickly set. The robot arm can be manually moved to the target position, and then set the current site as the automatic operation position. The knob-type pulse trimmer for precise positioning can also be used in this process, so the set value is more accurate and convenient.
8. Maximum power: 2.50 kw electric control box: integrated electric box
9. With stand mobile teach pendant, cable length 3 m
10. Protection class: ip20 humidity: up to 95%, no condensation
11. Ambient temperature 0 - 45 ° c
power: single-phase plus ground, 220v voltage
