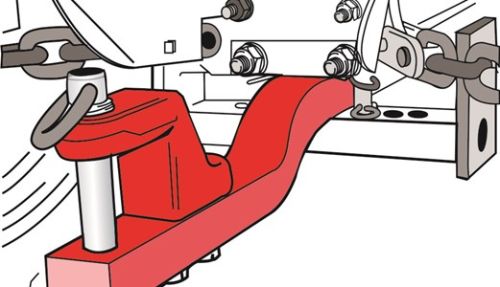

SWINGING DRAW BAR

Ideal gadget for towing any type of farm load including trailed implements, by attaching it to a tractor under center axle housing. Can be fitted to MF 240. MF 350, MF 260, MF 375, MF 385 and MF 385 4WD tractors. The swinging draw bar conforms with British Standard having a Clevis hitch point at 36 mm (14 inch) from the PTO shaft. The maximum static load for the drawbar is 771 kg (1700 Lb) with the draw bar in the outer position and 998 kg (2200 Lbs) in the inner position. The draw bar height is adjustable in relation to the PTO center line.
