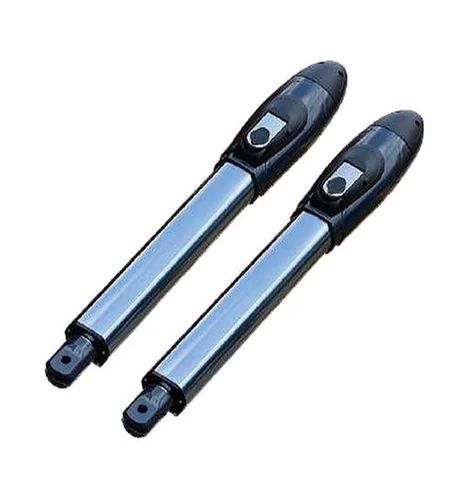

SWINGO series 230V and 24V irreversible electro-mechanical actuators designed for industrial swing gates with leaves up to 5 m in length. Its compact design and reliable mechanism ensure smooth and stable gate movement.
Features
| MODEL | CODE | WEIGHT | GATE LENGTH | FREQUENCY | IP RATING |
|---|---|---|---|---|---|
| SWINGO 230 V | 18615 | 400 Kg | 3.5 m | 80 % | IP 54 |
| SWINGO 230 V | 18616 | 500 Kg | 5 m | 80 % | IP 54 |
| SWINGO 24 V | 18617 | 350 Kg | 3.5 m | 80 % | IP 54 |
| SWINGO 24 V | 18618 | 400 Kg | 5 m | 80 % | IP 54 |
| Model | SWINGO 400 | SWINGO 400 | SWINGO 400 | SWINGO 400 |
|---|---|---|---|---|
| Power Supply | 110-230 V±10 % , 50Hz ± 10% | 110-230 V±10 % , 50Hz ± 10% | 24 Vdc | 24 Vdc |
| Current | 3.5 A | 3.5 A | 5 A | 5 A |
| Power Consumption | 480 W | 480 W | 12O W | 120 W |
| Maximum Leaf Length | 3.5 m | 5 m | 3.5 m | 5 m |
| Maximum Leaf Weigth | 400 Kg | 500 Kg | 350 Kg | 400 Kg |
| Maximum Travel | 370 mm | 490 mm | 370 mm | 490 mm |
| Thrust | 1800 N | 1800 N | 1800 N | 1800 N |
| IP Rating | IP 54 | IP 54 | IP 54 | IP 54 |
| Operating Temperature | -20°C to 65°C | -20°C to 65°C | -20°C to 65°C | -20°C to 65°C |
| Net Weight: | 11 Kg | 12 Kg | 11 Kg | 12 Kg |
