Switch Tester, Socket Tester

₹ 5.43 Lakh / 6000 6000 Set

MOQ1 Set(s)
fixtureeasy to change
stations4
operating mode touchscreen
load bankto be connect
Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering switch tester, socket tester etc. We are offering switch tester, socket tester. It is mainly used in the plug and socket's life-span of insert and withdraws testing. It is also used in the switch’s life-span testing. This machine can work together with the loading machine to perform loading test.

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Payment Terms T/T
Port of DispatchShenzhen

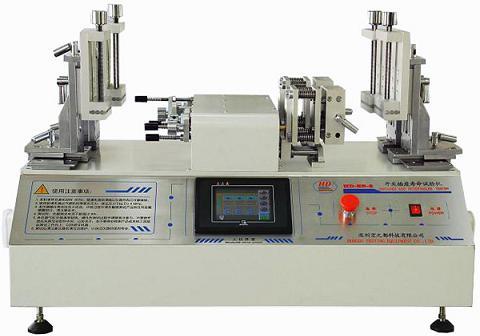

Packaging DetailsHONGDU TESTING EQUIPMENT CO.,LTD. HD-SR-2 Switch and Socket Tester Product explanation: This machine is designed and manufactured to meet the requirements of GB2099.1, GB10592, IEC60884.1 and UL1054 standards. It can test the mechanical and electric life-span of receptacle and switch. It is mainly used in the plug and socketÃ¢ï¿½ï¿½s life-span of insert and withdraws testing. It is also used in the switchÃ¢ï¿½ï¿½s life-span testing. This machine can work together with the loading machine to perform loading test. Features: * This machine is operated by touch-screen, so it has a higher testing precision. * This machine has four working units. Unit 1 and unit 2 are used to perform plug receptacle test separately. Unit 3 and unit 4 are used to perform switch test separately. Unit 1 and unit 2 also can perform switch test together. * Test times can be set in advance, and test times for each working units can be set separately. When the test over, this machine will stop automatically. * When test failed, this machine will alarm and stop working. OPTION: HD-40D Loading machine Technical parameter: Power source AC 220V 50Hz Rated power 200W Loading current Less than 30A(when work with a loading machine) Operating model Touch-screen Cylinder power Compressed air with 0.4 to 0.6Mpa Counter 0~99999times Using temperature 0~400C Using humidity Less than 85% Exterior dimensions 1000mm W, 680mm D, 500mm H Standards: GB2099.1 GB10592 IEC60884.1 UL1054 Test Objects: Plug&receptacle Switch
Delivery Time30days within payment
