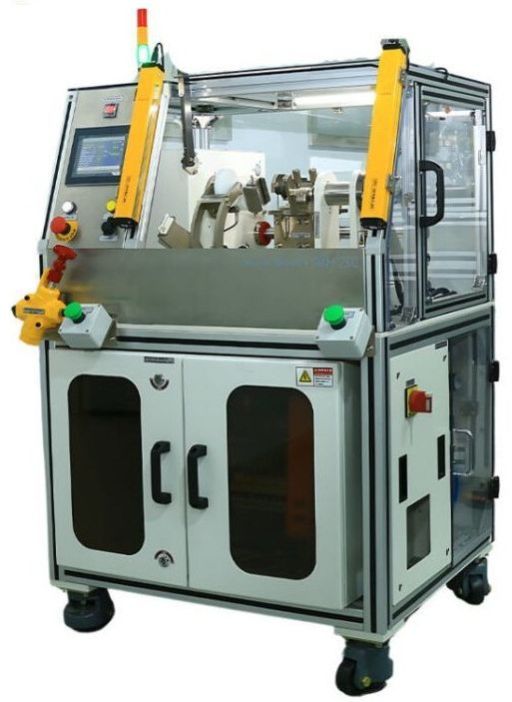

SWM 250 Segment Winding Machine

Product Description

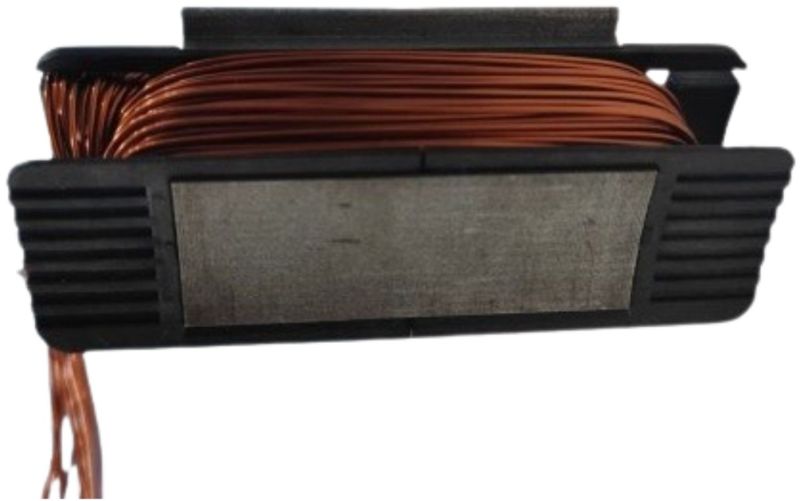

• The machine is designed to wind both rectangular as well as round conductors of large cross-sections. It finds application in the winding of segmented pole stators and axial flux motor coils (that require tailstock) in the EV segment.

Features

• Segment Winding Machine SWM 250 is designed to wind square, rectangular as well as round conductors used in EV motors.
• A sturdy and robust structure with the best utilization of floor space makes the machine ergonomically better for higher productivity and longer life.
• High torque spindle coupled to geared AC servo motor, handles single and dual conductors with ease.
• Servo-controlled traverse spindle allows for complex winding such as orthocylic winding and variable pitch winding.
• Pneumatically actuated pressing rollers with quick roller changeover for various bobbin sizes helps in achieving compact winding and saves overall changeover time.
• Tension release facility to facilitate easy anchoring of the conductor without fatigue to operators.
