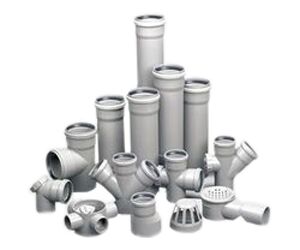

SWR Systems offer far more superior solution to conventional Cast Iron & Asbestos cement drainage systems as they provide valuable life long trouble free performance.Quality standards set for SWR Drainage Systems are enormous as they are designed to withstand all kinds of weather from blazing Heat of Thar Desert to Freezing Cold of Ladakh.We Offers complete range from Cowl to Shoe Bend in 75mm & 110 mm Combinations. SWR Drainage(Sanitary) Pipes are also Available in 50mm,63mm,90mm & 160mm.
Â
Features
Â
Â
Lightweight : Convenient and cost effective as transportation & handling is easy.
Flexibility in usage :Possible due to option of joining either by rubber ring or with solvent cement.
High Flow Rate :Excellent flow properties that remains constant throughout its life, possible due to the internal smooth surface.
Weather Resistant :Excellent outdoor weathering performance due to specially blended UV estabilised compound.
Aesthetic Superiority :Far superior when compared to conventional CI and AC systems.
High Impact Strength :Not prone to mechanical damages due to handling and transportation.
Chemical Resistance :Unaffected by a wide range of chemicals & safe from attacks by galvanic or electrolytic action.
Non-Flammable :Self-extinguishing as it does not support combustion.
Corrosion Resistant :Constant contact with water does not deteriorate the material.
Rodent Repellent :Special treatment at compounding stage ensures that the product is immuned to rodent attacks.
Nominal Diameter
| Mean Outside Diameter | Type A | Type B | Lenght | Socket | |||||
|---|---|---|---|---|---|---|---|---|---|
| Wall Thickness | Wall Thickness | AVALABLE | |||||||
| MM | Min | Max | Min | Max | Min | Max | In Mtrs | ||
| 75 | 75 | 75.3 | 1.8 | 2.2 | 3.2 | 3.8 | 3,2,1 | ||
| 90 | 90 | 90.3 | 1.9 | 2.3 | 3.2 | 3.8 | 3,2,1 | ||
| 110 | 110 | 110.4 | 2.2 | 2.7 | 3.2 | 3.8 | 3,2,1 | ||
| 160 | 160 | 160.5 | 3.2 | 3.8 | 4 | 4.6 | 3,2,1 | ||
| SIZE | HORIZONTAL (IN MTR) | VERTICAL (IN MTR) | |
|---|---|---|---|
| 75 | 90 | 110 | 160 |
| 0.9 | 0.9 | 0.9 | 1.2 |
| 1.8 | 1.8 | 1.8 | 1.8 |
PIPE CLASSIFICATION
| TYPE A | TYPE B |
|---|---|
| Used for Ventilation & Rain-Water System | Used for Soil & Waste Discharge System |
