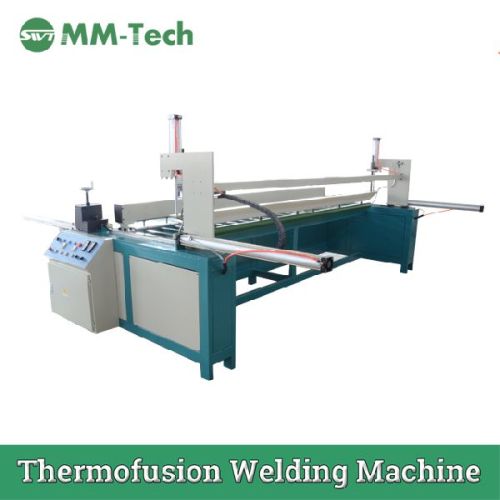

SWT-ZW4000 Board Bending Welding Machines

SWT-ZW3000 Sheet Bending Welding Machine MM-Tech Sheet Butt Fusion Bending Machine included Plastic Butt Fusion Bending Machine,Sheet Bending Welding Equipment,Board Butt Fusion Welder,Cutting Machine ,and the overall machine concept creates the ideal requirements for quality-assured welding in accordance with DVS 2208-1. Technical Specifications SpecificationSize SWT-ZW3000 SWT-ZW4000 Sheet Thickness (mm) 3.0-30.0 3.0-30.0 Bending length 3000 4000 Bending Angle 40-150 40-150 Air pressure(kg.f cm2) 6.0-8.0 6.0-8.0 Rated voltage (V) 380V5060Hz 380V5060Hz Heating power(KW) 9kw 12kw Rated Current (A) 36 48 External dimensions (L*W*H) mm 4200*1800*1600 5100*1900*1600 Packing dimensions (L*W*H) mm 4330*1900*1850 5250*2000*1850 N.W KGS 1380kg 1550kg G.W KGS 1500kg 1650kg Heating element: Teflon Coated Heating Plate Device equipped with automatic winding device mechanism Suitable material: PP,PE,PVDF,PVC,PPN. Can be customized according to customer requirements Scope of application: electroplating equipment, environmental protection equipment, chemical containers,  sewage treatment, piping, ventilation systems and other industries Bending Welding Machine
