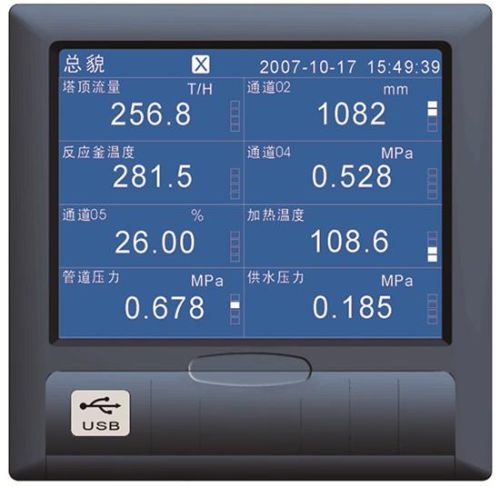

SX 5000 Paperless Recorder

SX5000 blue-screen paperless recorder has max 16-channel universal input function. Chartless Recorder can input the standard current, standard voltage, frequency, millivolt, thermocouple, thermal resistance and other signals. It is low cost paperless recorder but with powerful functions. Chartless Recorder also has some other functions, including isolated power distribution output of sensors, relay alarm output, transmitter output, flow accumulation, temperature and pressure compensation, transfer storage of historical data, printing, Ethernet and remote communication.
Using the latest large-scale integrated circuit.
Using high-speed & high-performance 32-bit ARM microprocessor, Paperless data recorder china can detect,record,display and alarm 16 channels signals simultaneously.
5.6 inch 320x 234 dot-matrix TFT high brightness and blue screen LCD, CCFL backlight, clear picture, brilliant color, and wide viewing angles. This type chartless recorder price is low.
Fully isolated universal input, which can input a variety of signals. Chartless Recorder can be configured by software without jumper.
New switching power supply, which can function properly within the range of 85VAC ~ 265 VAC.
Integrated hardware real -time clock, which can run accurately in case of power down.
Provide isolated 24VDC power distribution for transmitter.
Paperless recorder manufacturer designs the chartless recorder with large capacity storage of FLASH memory chips to store historical data, which will never lose data in case of power-down.
SX5000 blue-screen paperless data recorder max has 12-way relay alarm output.(SX5016 max has 8 relay outputs)
