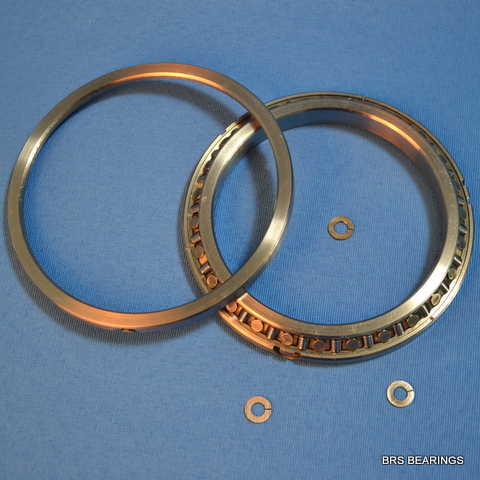

Sx011828 Crossed Roller Bearing ( Ina Structure)

we are offering sx011828 crossed roller bearing ( ina structure).
sx011828 crossed roller bearing
d 140 mm
d 175 mm
b 18 mm
rmin 1.1 mm
ca 63 kn basic dynamic load rating, axial
coa 240 kn basic dynamic load rating, axial
cr 45 kn basic dynamic load rating, radial
cor 96 kn basic static load rating, radial
mass 1.1 kg
brs precision crossed roller bearing (ina structure)
ina structure precision crossed roller bearing is a special kind of bearing with major series sx011. the rollers are placed together at right angles with alternate rollers facing in opposite directions, which enables bearing to support radial and axial loads at the same time. with supreme machining precision, brs ina structure crossed roller bearing possesses the features of flexible rotation, high rigidity, high precision and high loading capacity.
ina structure crossed roller bearing model:
sx011814|sx011818|sx011820|sx011824|sx011828|sx011832|sx011836|sx011840|sx011848|sx011860|sx011868|sx0118500
luoyang brs bearing co.,ltd specialized in producing sx series bearing. to learn sx series' price, detailed parameters, usage and installation, maintanence or other infomation please contact us.
