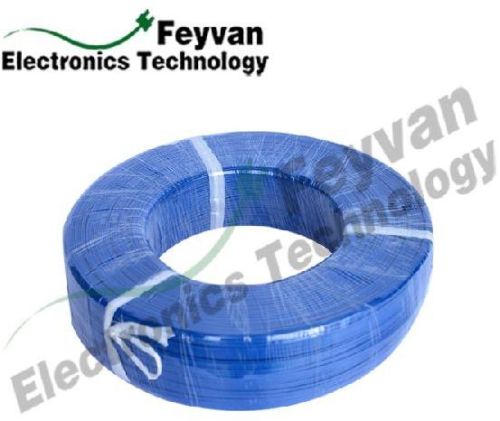

SXL- Special Purpose Crosslinked PE Automotive Wire

SXL automotive wire is the second thickest crosslinked polyethylene insulation, and suggested for use in the heavier gauges, or where some additional protection from possible mechanical damage and high heat resistance is needed. SXL wire typically features a bare copper conductor and is stranded for great flexibility with SAE J1128 and RoHS compliance.. S means: Special Purpose XL means: Cross linked PE (XLPE) Technical Date: - Rated temperature: 125℃ - Rated Voltage: 60V DC - Reference standard: US standard SAE J1128 - Conductor: Stranded annealed bare copper - Insulation: XLPE compound especially for automotive - Uniform insulation thickness to ensure easy stripping and cutting - Resistant to heat, oil, abrasion and cold AWG Conductor Nom. Thickness mm Finished Wire Diameter mm Max. Resistance At 20℃ Ω/km      No./mm  Cross Section      mm2 20 7/0.32 0.50 0.74 2.50 32.7 18 19/0.23 0.80 0.76 2.70 24.4 16 19/0.28 1.00 0.81 3.10 14.3 14 19/0.35 2.00 0.89 3.60 8.8 Package options:
