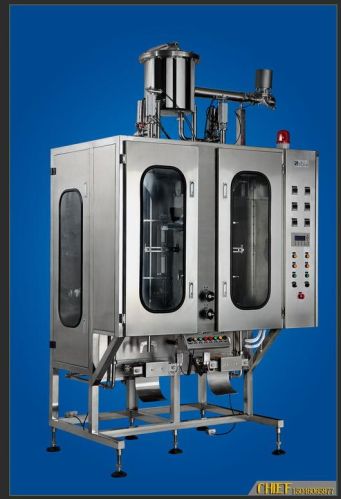

Syb-iiisc Automatic Liquid Packing Machine

This machine was specially designed and manufactured for solving the problem of contamination during pasteurized milk packaging. The feeding system of the machine can be linked with CIP system to make up automatic circulating cleaning system, to guarantee the clean of the feeding pipes.
The packaging materials are sterilized by the UV lights inside of the machine, to make sure that, both of the packaging materials and the liquid products are operated under a clean environment.
This machine can reduce the contamination to the liquid materials during packaging processes, and make the shelf life of the milk products much longer with good quality.
The machine can automatically finish the processes of pouch forming, filling, dosing, sealing and cutting, date printing, etc.
The machine has the advancements of simple structured, fast packaging speed, stable quality, long operating life, etc. and it is now the most suitable packaging machine for pasteurized milk.
The machine is suitable for pillow type pouch packaging.
Specifications:
Model: SYB-IIISc
Pouch sealing form: 3 side seal
Capacity: 70—100 pouches/min
Packaging volume: 200—500ml-1000ml
Accuracy: ±1.5%
Width of the film: 320mm
Length of the pouch: 95—165mm
Air pressure: 0.65Mpa
Air consumption: 1.6m3/min (0.8Mpa)
Power supply: AV380V±10%, 50Hz
Power: 3.85Kw
Weiht: 720kg
Dimensions(L×W×H): 1700×1100×2950(mm)
