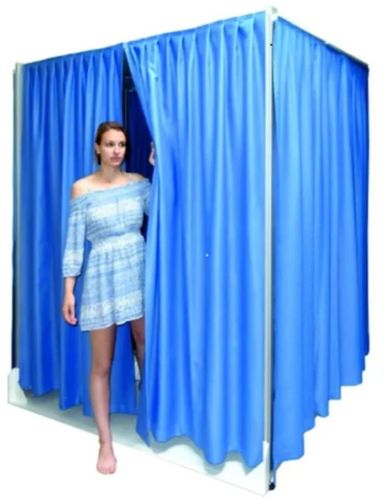

Symcad III Model TX20 Transportable 3D Body Scanner

Frequency50 Hz
Voltage280
Power SourceElectric
ApplicationBody Measurement Extraction, Body Shape Analysis, Garment Size Recommendation
Supply TypeExporter, Supplier, Importer
Preferred Buyer Location All over the world

Company Information

4.5/5

(27)

Ask for more detail from the seller

Report incorrect details

Frequency50 Hz
Voltage280
Power SourceElectric
WarrantyOne-year Including Hardware And Software Maintenance
ApplicationBody Measurement Extraction, Body Shape Analysis, Garment Size Recommendation
No of LED Lighting4 LED ramps
High Speed 3D Capture< 1.5 sec
Frame MaterialAluminum
Operating SystemMicrosoft Windows 8.1 Pro

Specifications / Features:

Digital Data Capture PC Workstation (Microsoft Windows 8.1 Pro – English version)
Automatic calibration device with removable electronic object
20 depth sensors, factory-calibrated, with electronics and wiring technology (patented by TELMAT) for electronic and optical infrared noise reduction
Unlimited license of SYMCAD and MORPHOBASE software programs:
Automatic body measurement extraction, export, and printing
Body shape analysis (extraction of body figure indicators)
Management of measurement surveys
Automatic garment size recommendation
Interactive control of body measurement extraction
Local MORPHO relational database management system
Parameterization of the MORPHO database (garment size conversion tables, user-defined measurements, etc.)
One-year warranty including hardware maintenance (‘return to factory’), software maintenance, and hotline support
