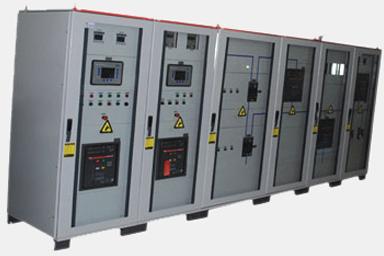

Synchronization Panel

The Synchronizing panels are mainly designed and used to meet power system requirement. DG sync panel controls the functionality of a number of diesel generator sets. To synchronize two or more diesel generator sets, it is required to match all the parameters viz. voltage, frequency, speed, phase sequence and phase angle These panels function both manually and with an automatic synchronizing function for one or more generators or breakers. After an initial warm-up period (adjustable) the generators will synchronize with each other by means of motorized circuit breakers or contactors onto a common busbar.27
