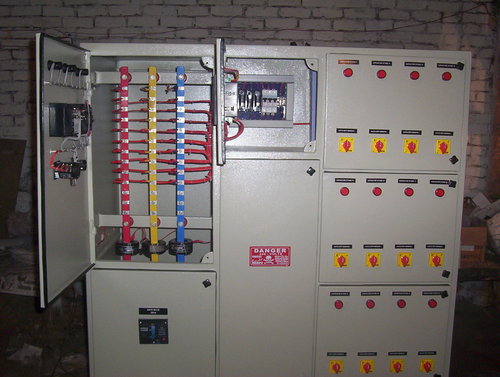

Synchronizing Panel

Synchronizing panel works between two or more different power sources like dg sets to manage power supply. Synchronization helps in making different dg sets behave as a virtual single unit and eliminates subdivision of total load. It helps in transferring load from one unit to another as during service period, so that the unit requiring service can be easily shut off. In this way the critical load need not be interrupted and there is no production loss. During low load we can run any single unit, and synchronize more units as the load increases. This can be manual or automatic.
Synchronizing as we know is important from the point of view that how loads sharing between different unit's takes place and load transfer during the maintenance is important. Panels require two or more different sources of power likewise between dg sets and the main grid. Synchronizaing panel is used where one dg set synchronizing with two or more dg set when mains fail all dg start at a time but after some time one will be on & other will be stop as per load demand .when load increased above 70% of the total load the 2nd dg will be start & it synchronizes with first one & total load was distributed equally on that two dg set & this process will go on. During low load we can run any single unit, and synchronize more units as the load increases. This can be manual or automatic.
