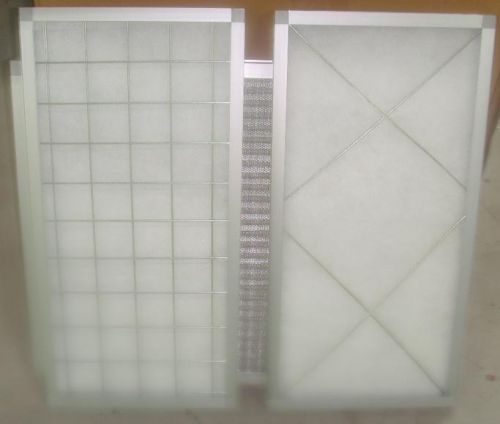

Synthetic Fiber Panel Air Filter

MOQ50 Piece(s)
FrameStainless or Al
Final resistance(suggest)100Pa-(max)200Pa
EN779 ClassG2,G3,G4
Protect meshAl mesh or spray iron mesh
Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering synthetic fiber panel air filter. synthetic fiber panel air filter 1) application: filter dust, pre-filter through air filter program 2) type: synthetic fiber plank filter 3)....

Company Information

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2006

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering synthetic fiber panel air filter.
synthetic fiber panel air filter
1) application: filter dust, pre-filter through air filter program
2) type: synthetic fiber plank filter
3) frame: stainless or aluminum frame
4) media: synthetic fiber
5) protect mesh: aluminum mesh or spray iron mesh
7) en779 class: g2, g3, g4
8) average arrestance:65%-85%, 80-90%, ≥90%
9) din53438 non-flammability standard: f1
10) final resistance: (suggest)100pa-(max)200pa
11) max. Air flow: 125% of the rated air flow
12) temp. Resistance: 100degree
13) humidity: 100%
technical parameters.
Type: （dimensions) rated air flow en779 ( color) initial resistance
( mm ) ( m3/h ) 　 ( pa )
height width depth 　　
zhany-is-1 595 595 21 3200 g2 white ≤15
zhany-is-2 595 290 21 1600 g2 white
zhany-is-3 595 595 21 3000 g3 blue & white ≤18
zhany-is-4 595 290 21 1500 g3 blue & white
zhany-is-5 595 595 21 2800 g4 green & white ≤20
zhany-is-6 595 290 21 1400 g4 green & white
