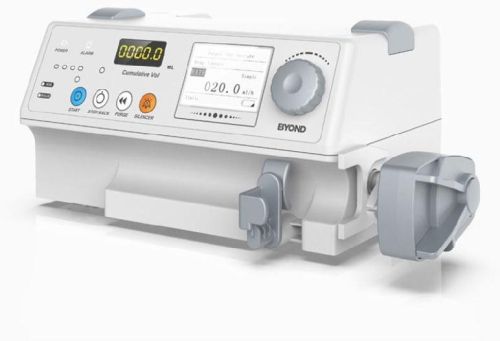

Syringe Pump, Application : Industrial Use

Get Latest Price

Availability2.2kg (net weight)
Equipment ClassificationClass II, internal power supply, Type CF
AlarmsInjection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Unique Human Voice Alarm systemThe device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Availability2.2kg (net weight)
Dimension280mm (L) ×210mm(W) ×130mm(H)
Power Consumption30VA
Transport & Storage ConditionAmbient temperature:-30â~ +55â
Volume Limit0.1ml ~ 9999.9ml (0.1ml step)
Relative humidity20 ~ 90%
Unique Human Voice Alarm systemThe device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Flow Rate AccuracyWithin ±3% (after correct calibration)
Purge Rate50/60ml Syringe: 1,500ml/h 30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h
Occlusion of Single Channel Syringe PumpHigh: 800mmHg ±200mmHg (106.7kPa±26.7kPa) Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa) Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Power SourceAC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
Operating ConditionAmbient temperature: +5â~ +40â
AlarmsInjection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Total Injection Volume0.1ml ~ 9999.9ml (0.1ml step)
Relative humidity≤95%
Rate:50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step) 1,000ml/h ~ 1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step)
Equipment ClassificationClass II, internal power supply, Type CF
Mechanical precisionWithin ±2%
IP ClassificationIPX4
KVO rate1ml/h
FuseF1AL/250/60V, 2pcs inside
Bolus Rate50/60ml Syringe: 1,200ml/h 30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h
