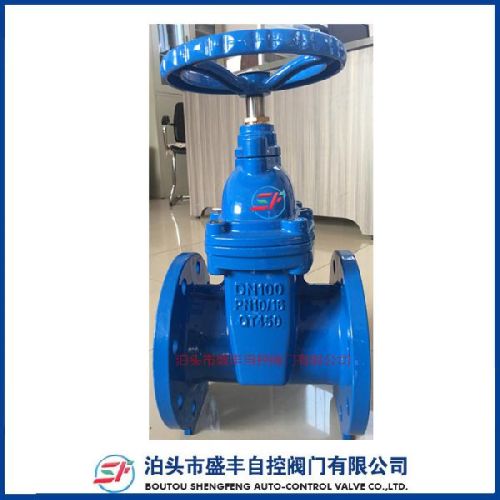

SZ45X Non-rising Stem Resilient Seated Gate Valve

Characteristic:
1.The seal is designed with dustproof ring plus three "O" seal ring,reliable sealing,on-line replaceable
2.Both gate and aluminum bronze bearing are in inaid design good self lubrication,high strength and can have the aluminum bronze bearing replaced withoutneed to replace the gate integrally,aftere a long time use.
3.rubber wrapped gate anti-corrosion,good tightness.
4.advance surface treatment,coated with non-toxic epoxy resign static power,anti-corrosion,pollution-free,can be used drinking water pipeline.
5.The body is designed without gate slot,the smooth passage will not get impurities filling up,more applicable for sewage working condition.
6.The integral seal works raliably,for the high pressure seal,leaving zero leakage under 1.5times nominal pressure and for the low pressure one ,under 0.02mpa.
Z45X Non-rising stem resilient seated gate valve main
Z45X Non-rising stem Technical parameters:
Material of main parts:
No part material
1 Body Ductile iron
2 Disc Suctile iron packed with NBR
3 Bolt CS SS
4 Gasket EPDM NBR
5 Cover Ductile iron
6 Stem stainless steel
7 O-ring EPDM silicone
8 Thrust bearing brass
9 Bolt CS SS
10 Gland Ductile iron
11 Dust proof gasket EPDM NBR
12 Hand wheel Ductile iron
