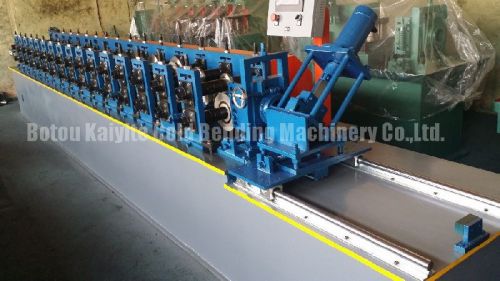

T Bar Light Keel Roll Forming Machinery

T Bar Light Keel Roll Forming Machinery Light keel made by the T bar light keel roll forming machinery is suitable decoration the inside of the building of fire protection requirements . It is mainly used for large public buildings , such as large hotels in the hall , waiting room, waiting hall , shopping hall business hall , theaters , halls, exhibition halls and so on . This is easy to maintain the air condition , electrical fire equipment . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand    Raw Material A. Suitable Material: Colored Steel Plate, Galvanized Board, Aluminum Plate;   B. Thickness: 0.7mm - 1.2mm;  Main Body A. Roller station: 14 Stations;                       B. Diameter of shaft: ￠50mm, 45# steel; C. Roller material: 45# steel;                        D. Frame: 350 H steel; E. Working speed: 25 - 35 mmin; Power A. Motor power:5.5 Kw,  Hydraulic power: 3 Kw; B. Voltage: 380V 50Hz 3Phases or Customization; C. Driving way: By Chain Hydraulic system : Material of blades: Cr12, quenching treatment.   Forming rollers Specification: 45# steel, CNC Lathes, heat treated Feature: hard chrome plating, 0.05 mm   Main frame   specification: 350 H steel .
