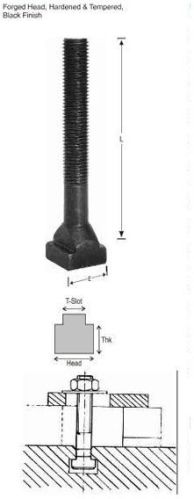

Our company is one of the major Suppliers of T-Bolts in Mumbai. We provide T-Bolts with forged head as well as hardened and tempered black finish. Our range of T-Bolts is high on quality and excellent in performance.
Features of T-BoltsApplications of T-Bolts : Used in jig fixtures and Hydraulic equipments as one of the clamping elements.
Specifications
| Item Code | Model | Thread Size | T-Slot Size | Total Length L | Head E | THK |
| 11501 | PTB - 1212 - 80 | M - 12 | 12 | 80 | 18 | 7 |
| 11502 | PTB - 1212 - 100 | M - 12 | 12 | 100 | 18 | 7 |
| 11503 | PTB - 1212 - 125 | M - 12 | 12 | 125 | 18 | 7 |
| 11504 | PTB - 1212 - 160 | M - 12 | 12 | 160 | 18 | 7 |
| 11505 | PTB - 1212 - 200 | M - 12 | 12 | 200 | 18 | 7 |
| 11506 | PTB - 1214 - 80 | M - 12 | 14 | 80 | 22 | 8 |
| 11507 | PTB - 1214 - 100 | M - 12 | 14 | 100 | 22 | 8 |
| 11508 | PTB - 1214 - 125 | M - 12 | 14 | 125 | 22 | 8 |
| 11509 | PTB - 1214 - 160 | M - 12 | 14 | 160 | 22 | 8 |
| 11510 | PTB - 1214 - 200 | M - 12 | 14 | 200 | 22 | 8 |
| 11511 | PTB - 1214 - 250 | M - 12 | 14 | 250 | 22 | 8 |
| 11512 | PTB - 1616 - 80 | M - 16 | 16 | 80 | 25 | 9 |
| 11513 | PTB - 1616 - 100 | M - 16 | 16 | 100 | 25 | 9 |
| 11514 | PTB - 1616 - 130 | M - 16 | 16 | 130 | 25 | 9 |
| 11515 | PTB - 1616 - 160 | M - 16 | 16 | 160 | 25 | 9 |
| 11516 | PTB - 1616 - 200 | M - 16 | 16 | 200 | 25 | 9 |
| 11517 | PTB - 1616 - 250 | M - 16 | 16 | 250 | 25 | 9 |
| 11518 | PTB - 1616 - 290 | M - 16 | 16 | 290 | 25 | 10 |
| 11519 | PTB - 1618 - 80 | M - 16 | 18 | 80 | 28 | 10 |
| 11520 | PTB - 1618 - 100 | M - 16 | 18 | 100 | 28 | 10 |
| 11521 | PTB - 1618 - 130 | M - 16 | 18 | 130 | 28 | 10 |
| 11522 | PTB - 1618 - 160 | M - 16 | 18 | 160 | 28 | 10 |
| 11523 | PTB - 1618 - 200 | M - 16 | 18 | 200 | 28 | 10 |
| 11524 | PTB - 1618 - 250 | M - 16 | 18 | 250 | 28 | 10 |
| 11525 | PTB - 1618 - 290 | M - 16 | 18 | 290 | 28 | 10 |
| 11526 | PTB - 2020 - 110 | M - 20 | 20 | 110 | 32 | 12 |
| 11527 | PTB - 2020 - 150 | M - 20 | 20 | 150 | 32 | 12 |
| 11528 | PTB - 2020 - 210 | M - 20 | 20 | 210 | 32 | 12 |
| 11529 | PTB - 2022 - 110 | M - 20 | 22 | 110 | 35 | 14 |
| 11530 | PTB - 2022 - 150 | M - 20 | 22 | 150 | 35 | 14 |
| 11531 | PTB - 2022 - 210 | M - 20 | 22 | 210 | 35 | 14 |
| 11532 | PTB - 2022 - 110 | M - 20 | 22 | 285 | 35 | 14 |
| 11533 | PTB - 2424 - 150 | M - 20 | 24 | 110 | 40 | 16 |
| 11534 | PTB - 2424 - 210 | M - 20 | 24 | 150 | 40 | 16 |
| 11535 | PTB - 2424 - 285 | M - 20 | 24 | 210 | 40 | 16 |
| 11536 | PTB - 2428 - 110 | M - 24 | 28 | 110 | 44 | 18 |
| 11537 | PTB - 2428 - 150 | M - 24 | 28 | 150 | 44 | 18 |
| 11538 | PTB - 2428 - 210 | M - 24 | 28 | 210 | 44 | 18 |
| 11539 | PTB - 2428 - 285 | M - 24 | 28 | 285 | 44 | 18 |
| 11540 | PTB - 2428 - 330 | M - 24 | 28 | 330 | 44 | 18 |
| 11541 | PTB - 2428 - 350 | M - 24 | 28 | 350 | 44 | 18 |
| 11542 | PTB - 3036 - 160 | M - 30 | 36 | 160 | 54 | 22 |
| 11543 | PTB - 3036 - 250 | M - 30 | 36 | 250 | 54 | 22 |
| 11544 | PTB - 3036 - 320 | M - 30 | 36 | 320 | 54 | 22 |
