T-DTL Gas Liquid Separators

Wright Austin high efficiency T style DTL gas liquid separators for horizontal applications are designed specifically for liquid droplet separation involving high solids content. T style DTL gas liquid separators have a conical shaped drain sump for better drainage.

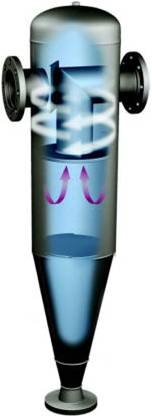

When properly sized, our separators will remove up to 99% of all liquid and solids greater than 10 microns in size from an air, gas or steam flow. The removal is accomplished by a design that causes the air/gas/steam to enter a controlled centrifugal flow. This results in forcing the entrained material to the outer wall and the VCP prevents re-entrainment. The removed particles and liquid accumulate at the bottom of the conical drain sump.
All Wright Austin Model DTL series air liquid separators are available with ASME code stamp and CRN. All fabricated 30L style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.
The typical float style drain trap is not recommended for this type of application, it is suggested that a rotary valve is used instead because its design inherently allows for the solids to be removed with minimal loss of air, gas or steam from the system.
