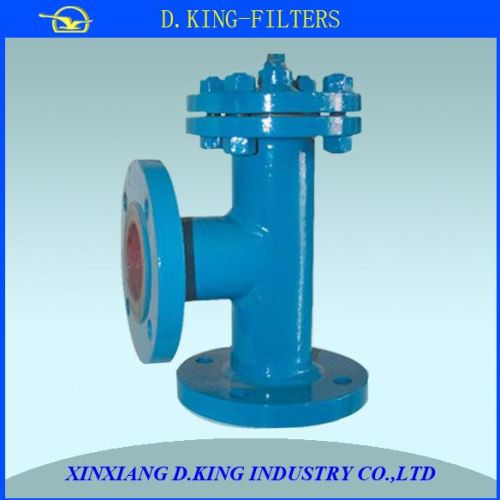

T Filter, Y Filter, Basket Filter, Brand Name : D.King

we are offering t filter, y filter, basket filter. t filter y filter basket filter rough filter tube filter
discription----t filter y filter basket filter
1. material: stainless steel, carbon filter;
3. effect: basket type filter is belong to pipeline rude filter series .normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end. used to clean up the impurity in the media, in order to protect the valve and the equipment normally use .
technical parameters---- t filter y filter basket filter
1. housing material: carbon steel, stainless steel;
2. nominal diameter: dn40-dn400 mm;
3. filter screen material: stainless steel;
4. sealing material: nbr, pllytef (according to working medium );
5. working temperature: no more than 90 centigrade;
6. connection type: flange;
7. normal pressure: 1.6mpa;
8. micron rating: 10-480 mesh (water 18-30 mesh, gas 40-100 mesh, oil 100-480 mesh).
application---- t filter y filter basket filter
1. weak corrosive materials in the chemical, petrochemical production ,eg: water , ammonia , oil , hydrocarbon;
2. chemical production of corrosive materials .eg: caustic soda , soda ash , dense and dilute sulphuric acid , carbonic acid , acetic acid , ester acid;
3. low temperature materials in the refrigeration. eg : liquid methane, liquid ammonia , liquid oxygen
4. light food , pharmaceutical production , health requirements of the material
operate follow these steps---- t filter y filter basket filter
1. unscrew the head at the bottom of the plug,
2. the row of net fluid,
3. remove the flange cover,
4. to reload after cleaning.
therefore, use convenient maintenance.
our mian product
the hydraulic filter , air filter , duplex filter , candle filter , water filter are the major products of our company . high quality and shortest delivery time is our advantages .we can produce products according to clients requirements .
