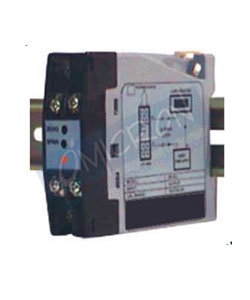

T148D: DIN Rail Mounted Temperature Transmitter (RTD)

Get Latest Price

Accuracy: ±0.1% of F.S
Output: 4 - 20mA
Model: T148D
Temperature Range: -200 to 850°C
Power Supply: 12 - 36V DC
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Omicron Sensing Pvt Ltd

Kalbadevi, Mumbai, Maharashtra

View Number

Member Since 10 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Accuracy: ±0.1% of F.S
Output: 4 - 20mA
Temperature Range: -200 to 850°C
Model: T148D
Power Supply: 12 - 36V DC

Food & beverage, pharmaceutical, chemical & petrochemical industries, conventional & nuclear plants, pumps, presses, turbines, hydro-cleaning machines, diesel engines & refrigerating plants.

Special Features :

	Programmable Input (Pt-100 3W)
	Linear Signal Output
	Current Loop Powered
	PC Based Configuration via USB Cable
	High Accuracy and Repeatability

	Input	: RTD: Pt100 2W / 3W / 4W
	Output	: 4 - 20 mA, two wire
	Accuracy	: ±0.1% of the calibrated span
	Operating Temp.	: -40°C to 85°C
	Storage Temp.	: -40°C to 120°C
	Calibration	Configuration with PC via USB Cable
	Isolation	: Input / Output Isolation Tested to 500 VAC rms (707 VDC) at 50 / 60 Hz
	Loop Supply	: 24V DC nominal (12 to 36)V DC
	Loop Resistance	: 600 Ohm @ 24V DC
	Burn Out	: Upscale for RTD PT-100
	Protection	: IP55
	Update Rate	: 0.5 sec
	Turn On Time	: 5 sec after power is applied
	Minimum Span	: 10°C / 18°F
