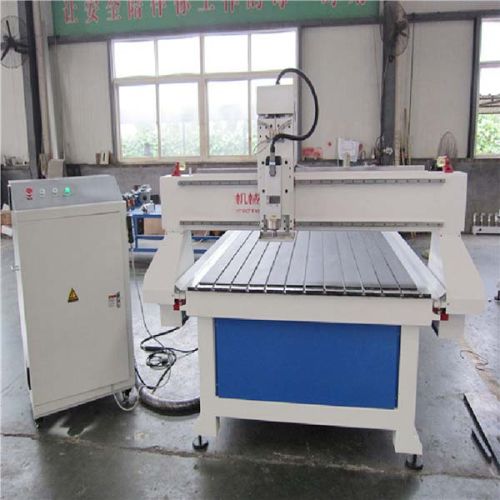

Table CNC Engraving Machine

We are offering table cnc engraving machine,
key features:
1. Seamless steel lathe bed
2. Taiwan linear guide
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Stepper motors
7. Oil-injection system
ideal for:
1. Timber
2. Mdf
3. Plastics
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
processing effect:
engraving, cutting, drilling, milling, enchase, relief, etc.
Standard sizes:
1300mm*2500mm
1500mm*3000mm
2000mm*3000mm
2000mm*4000mm
custom sizes and upgrades for the components are available on request.
Specification gy-m1325b gy-m1530b gy-m2030b gy-m2040b
working area
(x axis) 1300mm 1500mm 2000mm 2000mm
working area
(y axis) 2500mm 3000mm 3000mm 4000mm
clearance (z axis) 200mm
spindle 3.5kw water-cooled
spindle speed adjustable 0-24,000 rpm
tool change manual tool-change
drive system
(x & y axes) helical rack & pinion
drive system
(z axis) ball screw
drive motors stepperservo motors
inverter fuling
driver yako
command g code
cutter diameter φ3.175-φ12.7mm
maximum travel speed 35mmin
table top t slot hold down fixtures
(aluminum t slot is protected with pvc)
controller dsp handle
power requirements 3-phase 380v50hz
optional parts:
1. Rotary axis
2. Alignment pop-up pins
3. Gang drill
4. More spindles
5. Heavy duty lathe bed, etc.
Note:
all the parts of machine can do some changes to meet your requirements.
Such as the motor (stepper motor or servo motor), spindle (air cooled or water cooled, hsd or chinese brand), table of the machine (vacuum table, t-slot table or combination of t-slot & vacuum table) and operating system (dsp, weihong or syntec), etc.
