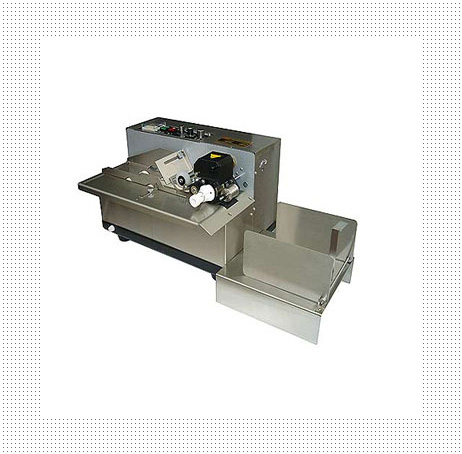

Contact SupplierHigh Speed Table Top Coder Model TTC – 380 – T for registered printing of B.No., Mfg. Dt., Exp. Dt., MRP `, etc. using Print-Dry Solid Wax System. The message (upto 6 lines) to be printed is composed by assembling changeable brass or grooved rubber stereos by pushing them onto the rods on the print drum. The stereos & the replaceable circular hot wax ink cartridge are heated to a temperature of around 150oC for printing on the substrate, so it is instant drying. The labels / cartons (max. size 200 X 380 mm) are stacked or fed individually in the input tray for feeding, automatically picked up one by one by the reverse roller, passed under the print head & stacked in the collection tray at speeds upto 300/min. The location of printing is electronically settable by trim-pots & also a preset counter can be set for the coder to stop automatically when the desired production is over. (Free accessories include 2 mm Numeric Brass Character Set & Hot Wax Ink Cartridge). This coder is ideal for Automatic High Speed Coding on large quantities of labels & cartons.
Supple Voltage | 230 Vac ± 10%, 180 W |
Substrate | Labels / Cartons |
Substrate size | 40 X 20 mm to 200 X 380 mm |
Printing Area | 4Max. 5 lines 10 letters per line (35 mm X 60 mm) |
Prints using | Easily Changeable Brass / Copper stereos 2/2.5/3 mm |
Printing Speed | Max. 300 imprints / min. using stepping clutch. |
Printing Medium | Quick drying liquid ink (Black, Red, White*, Golden*, etc.) |
Inking Medium | Instant dry thermo-fusible hot wax ink roll. |
Impressions | Appx. 1,00,000 per 32-mm. replaceable cartridge. |
Weight | 440 mm L X 340 mm W X 260 mm H / 30 Kgs |
