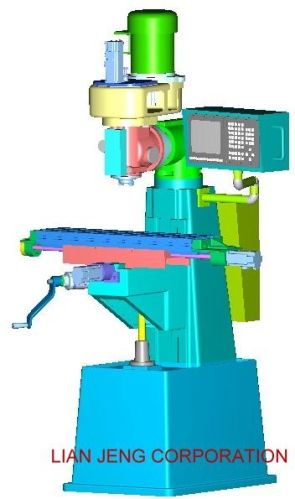

Taiwan Small Nc Milling Machine CF-A2NC, Brand Name : LIAN JENG

We are offering Models (CF-A2NC)
Table 工作台
Working surface(length*Width)面積 760x180mm
Traveling (X Y Z)行程 480x200x350mm
T-Slots T型槽 16mmx3
Vertical Spindle 立主軸
Spindle nose 主軸錐度 N.T.#30
Spindle speeds (R.P.M.) 轉速 3,500 r.p.m
Distance from spindle end to table top
主軸端度工作台面距離 50-350mm
Vertical travel of quill通心軸行程 80mm
Swiveling angle of head(right & left)左右傾斜角 90°
Cross travel of ram伸出臂行程 180mm
Horizontal rotation angle or ram水平旋轉角度 360°
Motor 馬達
For vertical spindle 主軸馬達 1.5KW
For XY feed XY軸進給馬達 0.4KW
For Vertical of quill feed 通心軸進給馬達 0.4Kw
For cutting fluid pump 冷卻裝置馬達 0.1KW-4P
Size 尺寸
Net weight(approx.) 淨重 600kg
Dimensions of machine(approx.) 佔地面積 1200x1100x2000mm
