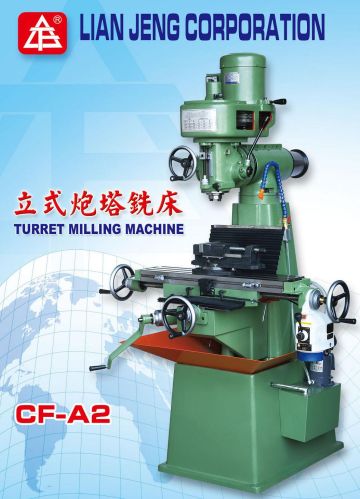

Taiwan Turret Vertical Milling Machine A2

We are offering taiwan turret vertical milling machine A2.
Models (CF-A2)
table
working surface(length*width) 760x180mm
traveling (x y z) 480x200x350mm
t-slots 16mmx3
vertical spindle
spindle nose n.t.#30
spindle speeds (r.p.m.) 180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60hz)
150, 300, 500, 750, 1000, 1160, 1320, 1500, 2330, 2650(50hz)
distance from spindle end to table top 50-350mm
vertical travel of quill 80mm
swiveling angle of head(right & left) 90°
cross travel of ram 180mm
horizontal rotation angle or ram 360°
motors
for vertical spindle 0.75kw(1hp)-4p8p
for table feed(optional) 0.1kw(1hp)-4p
for cutting fluid pump 0.1kw(18hp)-4p
size
net weight(approx.) 500kg
dimensions of packing case 1300x1300x1600mm
standard accessories: optional accessories:
lubrication system working light
coolant device
waterproof dish
power feed
220v->110v transformer
2-axis digital readout (linear scale).
