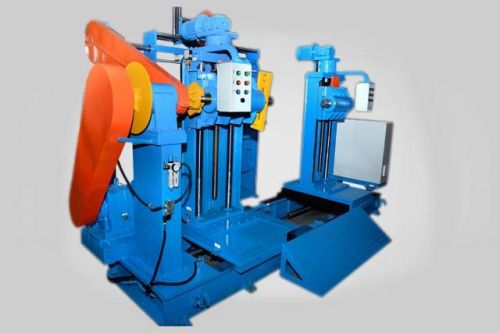

Take Up Stand

Bobbin filled weight10,000 Kg Max
Flange dia600 to 2400 mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Various models are available and offered against customer requirement Bobbi Dimensions Drum holding : Pintle type. Pintle assembly mounted on columns with motorized lifting and lowering.Two....

View More Details

Company Information

Member Since 14 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Various models are available and offered against customer requirement

Bobbi Dimensions

Drum holding : Pintle type. Pintle assembly mounted on columns with motorized lifting and lowering.
Two no Column are mounted on a machined bed with motorized movement

Bobbin loading / unloading :Motorized loading and unloading.Pintles can be lifted and loweredas well as column can be moved for easy loading / unloading of the bobbin.

Take Up Drive : By suitable AC geared Motor with variable frequency drive . Motor operated in torque control mode

Traverse Assembly : Traverse assembly with ball screw, Servo motor and servo drive , HMI, PLC etc or Rollring traverse assembly can be offered .
