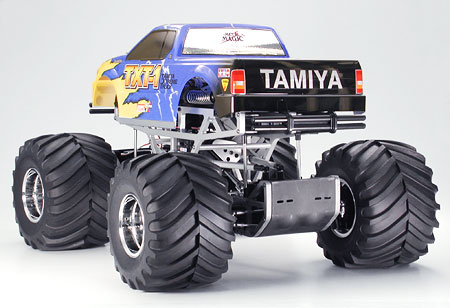

Tamiya TXT-1 Monster Truck 4WD Kit 58280

We Offer Tamiya TXT-1 Monster Truck 4WD Kit 58280.
Features :
- Tamiya TXT-1 Monster Truck 4WD Kit 58280
- Chassis: Ladder type 6mm thick machined aluminum.
- Drive: Four wheel shaft driven.
- Motor: Two Mabuchi 540s.
- Ball bearings: included, bushings are also included throughout kit
- Shocks: Oil-filled, high volume coil over with cantilever push rod design. This feature allows the shocks to provide long travel to enable the axles to clear the most extreme angles.
- Gearbox: One closed center gearbox with additional bracing that acts as a heat sink and an integral stress member for the chassis.
- Differentials: planetary gear.
- Transmission: single-speed.
- Tires: Split V treaded rubber 4.2" x 6.5" (106mm x 165mm).
- Wheels: Chrome finished plastic, one piece 2.6" x 3.7" (66mm x 94mm).
- Speed Control: Mechanical, three speed forward, one speed reverse.
- Bumpers: Front and rear nylon reinforced.
- Suspension: Four link solid axle, adjustable. Suspension links are made of high quality aluminum tubing with plastic ball cup ends for fully articulated movement. Front and rear stabilizer bars reduce chassis roll.
- Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
- Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when when viewed from front or behind vehicle
- Steering: Dual tie rod system.
- Four wheel steering is available by installing 2 way connector and high torque servo (must purchase separately).
- Body: Pre-painted and trimmed. Most of hood is Yellow changing to a deep Blue over the rest of the vehicle with a White lightning bolt pattern on the top and sides. A spare untrimmed transparent body is also included for the modeler who wants to create his own paint scheme. Both bodies are extended cab pickup truck style.
- Servo Saver: included, high torque.
Specifications :
- VEHICLE-
- Length: 20.07" (510mm)
- Width: 15.15" (385mm)
- Height: 11.69" (297mm)
- Weight: 11.04lbs (5010g)(approx.) with radio equipment 9.8lbs (4445g)(approx.) without radio equipment
- Wheelbase: 13" (330mm)
- Tread: Front & Rear-11.02" (280mm) side-to-side at wheel centers
- Track: Front & Rear 14.92" (379mm) side-to-side at outer edges of wheels
- Ground Clearance: 1.92" (49mm)
- Gear Ratio: 34:1
- Tires- Front and Rear: 4.2" x 6.5" (106mm x 165mm)
- BODIES-
- Length: 18.25" (463mm)
- Width: 7.36" (187mm) behind front wheels and at rear wheels
- Height: 5.12" (130mm)
Package Contents :
One Tamiya TXT-1 4WD Off-Road Electric Powered Monster Truck with oil filled, coil over shocks, two RS-540 high-torque motors, 3 speed mechanical speed control, clear body and painted body, 4.2" x 6.5" (106mm x 165mm) tires, 2.6" x 3.7" (66mm x 94mm) chrome plated plastic wheels, 15 tooth pinion gears, 40 tooth spur gear, instructions, decal sheet, antenna tube, shock oil.
