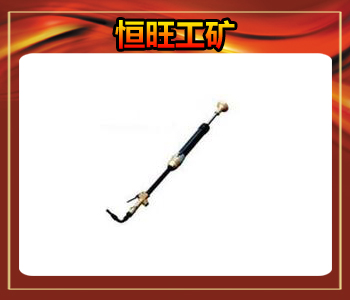

Tamping Machine

We are offering tamping machine.
d3 type small, used the occasion of narrow space occasion.
D4 pneumatic tamping machine light, suitable for stamping cores or smallsand mould.
d6 type suitable for medium casting modeling work.
D9 type with big work ability, suitable for large casting sand mold stamping work.
model d3 d4 d6 d9
weight 2.5kg 3.6kg 6kg 9kg
working pressure 0.63 mpa 0.63mpa 0.63mpa 0.63mpa
gas consumption 0.25 ls 0.35ls 0.45ls 0.65ls
impacttimes 900hz 800hz 700hz 600hz
piston diameter 17mm 20mm 25mm 32mm
structure stroke 92mm 128mm 155mm 207mm
hammer diameter 32mm 36mm 42mm 54mm
air tube bore 13mm 13mm 13mm 13mm
total length 410mm 480mm 975mm 1180mm
