Tandem Hydraulic Vibratory Roller

₹ 47.06 Lakh / 55000 55000 Set

MOQ1 Set(s)
Engine modelChinese DCEC Cummins 4BT3.9
Vibration amplitude0.67/0.34mm
Overall dimensions4558x1840x2674mm
Vibration frequency45/50Hz
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Exporter
Year of Establishment 2013

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Centrifugal force90x2/69x2kN
Vibration frequency45/50Hz
Vibration amplitude0.67/0.34mm
Grade ability40%
CabinSealed cabin with A/C, roller function cabin
Engine power/speed75kW/2400rpm
Operator's seatRotary 180 degrees
Drive motorOriginal SAUER piston motor
Vibration pumpOriginal SAUER piston pump
Drum width1730mm
Engine modelChinese DCEC Cummins 4BT3.9
Static linear load231N/cm
Operating weight8000kg
Drive typeFull hydraulic double drum drive
Overall dimensions4558x1840x2674mm
Vibration typeFull hydraulic double drum vibration

The engine model of Tandem Hydraulic Vibratory Roller is Chinese DCEC Cummins 4BT3.9. It is manufactured, exported and supplied by us from Henan, China. It has a drive type of Full Hydraulic double drum drive and the motor is Original SAUER piston motor. The frame is fork type and it has a good hold down property. The driver’s cabin is made spacious and special care is taken to make it comfortably equipped that makes it easy to operate.

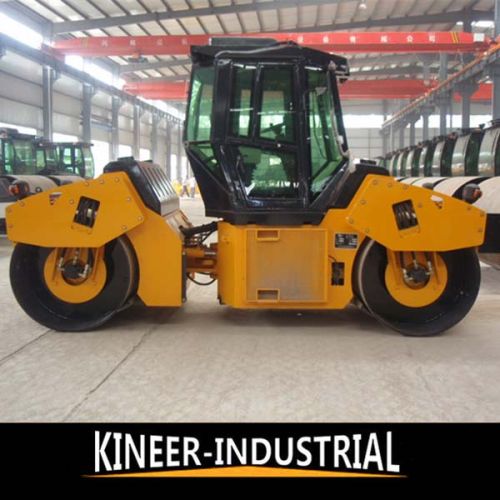

8 Ton Tandem Hydraulic Vibratory Roller

Full hydraulic two wheel drive and Vibration.
Dual frequencies and dual Vibration amplitudes.
Hydrostatic center articulated steering, patented crab mechanism.
The driver’s cabin is spacious and comfortable,equipped with rotary working seat,making the operation more flexible and convenient.
The driver’s cabin can be turned on one side as a whole, to facilitate maintenance.
Fork-type frame,good hold-down property.
