Tank 6km Ship 12km 5Hz 5mins Diode-pumped Laser Rangefinder

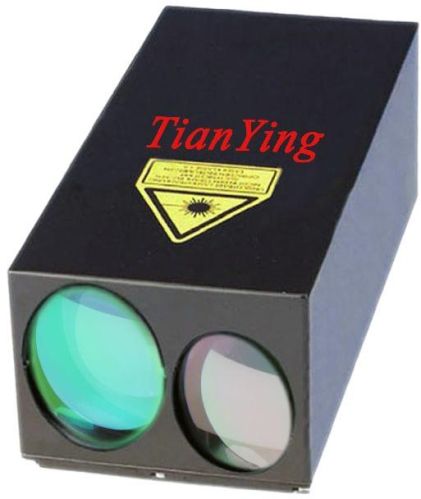

China TianYing TY-LR79 miniaturized 12km laser rangefinder module 5 Hz developed for modern optronic reconnaissance and target tracking platforms tasked to acquire small, fast moving targets, hence the 5Hz continuous 5minutes measuring rate and the extended range. They can find the range to mid-size targets such as 15m x 8m ship to distances up to and even beyond 12km.
The LRF-12km 5Hz is installed in platforms on ships, land vehicles or aeroplanes. Easy integrated to camera system, fire-control system etc, it is ideal for 200mm to 500mm focus cooled thermal camera system.
The system is equipped with an external communication connector enabling remote operation and output of electronic ranging information for further processing and display.
12km 5Hz continuous 5minutes Laser Rangefinder Module Recommended Use: 1) Optronic surveillance and reconnaissance. 2) Target tracking systems and anti-aircraft systems. 3) Fire control systems for land, air and sea targets. 4) For determination of flight altitudes on airports. 5) To measure the distance of ships from the coast. 6) In general for applications of position determination of moving objects.
12km 5Hz continuous 5minutes 1064nm/1570nm diode pumped Laser Rangefinder mainly specification:
Model
TY-LR79
Transmitter
Laser Type
Diode-pumped
Wavelength
1064nm, option 1570nm
Measuring rate
5Hz work 5minues and rest 5minutes, option 10Hz continuous or max 12.5Hz.
Beam divergence
≤ 1 mrad, option 2mrad, 0.8mrad, 0.7mrad, 0.6mrad, 0.5mrad, 0.3mrad etc.
Receiver
Detector
TE-cooled Avalanche Photo Diode Detector (TE-cooled APD).
Range data
Ranging capability
≥ 12km of ship/airplane/building/large craft with standart 23.5km visibility.
Accuracy
≤  2m (RMS)
Electrical interface
Data interface
RS422
Power
20 - 28V DC
Environmental conditions
Operation Temperature
-40ºC~+60ºC
Reliability
Life
≥ one million range measurements
MTBF
> 10000 hours
Mechanical interface
Size
≤ 1300 cubic centimeters
Weight
≤ 2kg with house
* - Note
* Product design and Technical information is subject to change without notice. ** Depending on the region of sale.
Question: 1, Why many 20km/30km/40km laser rangefinder can not measure tank 10km in standard 23.5km visibility? Because their 20km/30km/40km is theory data or high reflection large target in ideal visibility condition, even reflection need beyond 80% and visibility need beyond 50km. 2, Why many NATO target 10% reflection 12km laser rangefinder can not measure tank 10km in standard 23.5km visibility? Because their 10% reflection is not real performance data, 2.3m x 2.3m NATO target is not real tank, or their NATO target effective size is different; normal 2.3m x 2.3m target real albedo is 50% or more.
About test land standard, normal big target typical 20km LRF with 25km visibility, then, normal this LRF can measure 2.3m x 2.3 target about 15km or more, then, 30% albedo 2.3m x 2.3m target is about 10km ~ 12km.
Also, starting state and stable state measuring range is different too, such as 15mJ-25mJ LRF, starting state is 25mJ, typical stable state is only 15mJ, only many companies are only said starting state, for example, said single pulse laser energy is at least 25mJ. 3, Why many laser rangefinder do not show measurement rate details? Because max rate and continuous rate technology demand is different, such as max 12.5Hz 10 sec to 60 sec, maybe then 5Hz is max 1 min to 3 min with cycle.
Also, when rate have more different, such as 1Hz-5Hz, 1Hz-10Hz, 1Hz-20Hz, 5Hz-25Hz etc, then their working distance have more different too.
About 1.5µm eye safe laser rangefinder, if 1Hz is 10km, then, normal 5Hz is only balance about 80%~ 85%, normal 10Hz is only balance about  70%~80%, when this LRF laser energy is very low, then attenuation speed will accelerate. 4, Why normal mid-long range high rate laser rangefinder do not use for Erbium-glass laser? Because normal Erbium-glass laser energy is too low, high rate continuous measuring time is too short, especially at extreme operating temperatures.
In fact, if Erbium-glass laser want to meet demand, energy need at least 2mJ, normal need 5mJ to 8mJ.
Then, Erbium-glass is not competitive with OPO and Raman shifted. 5, Why many laser rangefinder price is very cheap? Because performance is different, for example: one LRF is used for bad cable, messy interface, messy wiring etc, then the LRF cost can reduce, even reduce much, but no warranty on performance.
If used for same performance, then our price is very cheap. that is why many laser rangefinder do not show their real main performance data.
