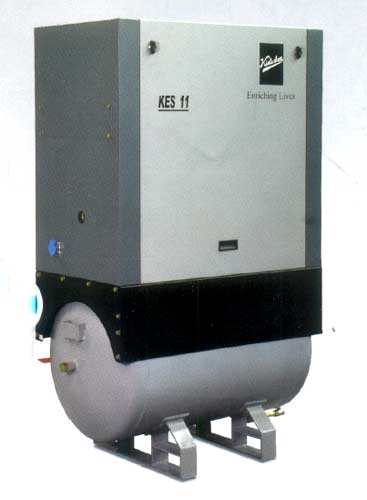

Tank Mounted Screw Compressor

We make available a robust and energy efficient range of Tank Mounted Screw Compressor of Kirloskar. The range of Tank Mounted Screw Compressor is widely used by many industries for getting reliable and clean compressed air. We make the complete range available at highly competitive price. Specifications :

• Capacity : 34 to 58 cfm
• Working Pressure : 7 to 13 kg/cm2

• Energy Efficient
• Rugged Construction
• Easy Maintenance
• Economical operation
• High Reliability
• Superior after sales Service Support

• Ready to use : Foundation is not required
• Quality Air : Efficient air / oil separation system ensures maximum oil recovery to minimize lub oil consumption and maintenance cost
• Canopy : Specially designed canopy to facilitate effective ventilation and ease of maintenance
• Cooling System : Radiator type oil cooler &after cooler with low noise fan & motor provided for effective cooling of lub oil and compressed air
• Control Panel : In built control panel housing main motor fan motor &other control of the package
• Air suction filter : Dry type air filter protects the airend and ensures long life
• Air Receiver : Compressor is mounted on Horizontal Air Receiver conforming to ASME Section VIll Div - 2
• Electric Motor : High efficient, TEFC, Class F insulation, Foot mounted, 2P, IP55 protection motor is selected considering operating conditions at site

• Moisture Separator with Auto Drain Trap : It separates condensed moisture from cooled compressed air
• Safety Relief Valve : It protects against building up high pressure in air/oil separator
• Blow down Valve : This facilitates very low power consumption in unloaded condition
• Many more safety devices like minimum Pressure Valve, Oil Level Indicator etc

Technical Specifications

• Overall dimensions "L-1235 mm,W -600 mm, H-1715 mm
• Unit performance measured according to ISO 1217Ed 3 Annexure - C, 1996
