Tank Weighing System

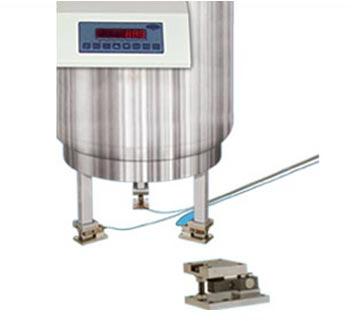

A silo weighing system normally consists of three or four load cells, each with a weighing module, a junction box and a weight indicator or transmitter. The weighing module ensures that the correct amount of vertical force is applied to each load cell, preventing it from being affected by non-vertical forces and ensuring repeatability of its signal output. The junction box joins the wires from the individual load cells in a watertight manner and averages the millivolt (mV) signals from the load cells to create a combined mV value that is sent to the input terminals of the weight indicator or transmitter with the minimum possible level of electrical noise. This, in turn, will have several communication options to send the weight to a PLC or PC.

The weighing system can be calibrated by filling the silo with a known weight of the stored material, placing or hanging certified test weights on the silo, or making use of the “theoretical calibration” function of the weight indicator or transmitter (where available). The “theoretical calibration” method uses the average (mean) sensitivity of the load cells (in millivolts per volt, or mV/V) to determine the mV signal that is sent to the weight indicator at specific values of applied weight.

Many of our local weighing system Partners, who are experts in their field, will be able to supply calibration services if you wish to have any silo weighing systems calibrated or certified. Please visit our Partner Network page to contact your local Thames Side partner.

Contact city scales now to discuss your requirements for the weighing of silos, tanks, hoppers, bins or bunkers.

We have the experience to provide expert guidance.
