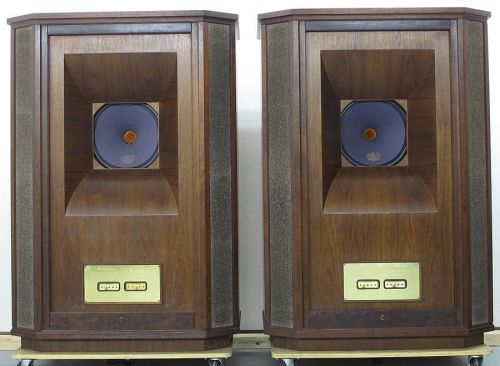

Contact SupplierWe are offering tannoy westminster royal se used speaker.
Recommended amplifier power : 50 - 225 watts
continuous power handling : 135 watts rms
frequency response : 18hz - 22khz -6db
sensitivity : 99db (2.83 volts @ 1 metre)
nominal impedance : 8 ohms
drive units:-
dual concentric high frequency : 51mm (2.00") with aluminium alloy dome, alnico magnet system with pepperpot waveguide
dual concentric low frequency : 380mm (15.00") treated paper pulp cone with he twin roll fabric surround. 52mm (2.00") round wire wound voice coil
dispersion : 90 degrees conical
crossover:-
frequency : 200hz acoustical,1khz electrical
type : bi-wired, hard wired passive, low loss time compensated 2nd order lf, 2nd order compensated hf.
adjustment : +- 3db over 1khz to 22khz shelving,
+2db to -6db per octave over 5khz to
22khz slope
construction
enclosure type : compound horn
volume : 530l (18.7 cu.ft)
dimensions : 1395 x 980 x 560mm
(55.00 x 38.50 x 22.00”)
weight : 138kg (304 lbs)
finish : walnut veneer with solid walnut edging and trim detail
