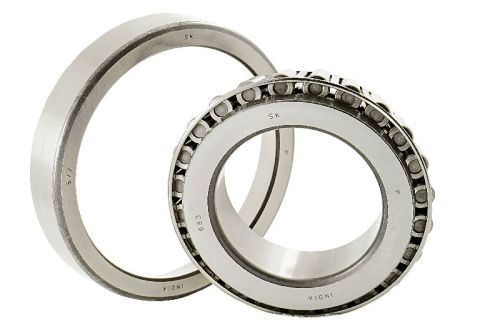

Taper Roller Bearings, Finishing : Polished

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

KANSARA ENGINEERS PVT. LTD. is a one of the leading manufacturing and export house in India. The organisation delivering the wide range of Bearings for various relevant industries covering Tapered Roller Bearings, Cylindrical Roller Bearings , Spherical Roller Bearings, Needle Roller Bearings, Ball Bearings, Four Point Contact Bearings, Clutch Bearings, King Pin Bearings, Cylindrical Roller Bearings with Flanged Outer and many more.

View More Details

Send Enquiry

Company Information

KAN`SARA ENG P LTD

Basni, Jodhpur, Rajasthan

View Number

Member Since 13 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

SNo.

Bearing No.

Boundary Dimensions (in MM)
d	D	B	C	T

Load Capacity (Newton's)
Static	Dynamic

Limiting Speeds (RPM)
Grease	Oil

Approx Weight Kg

1	11590/20	15.875	42.862	14.288	9.525	14.288	17.8	18.1	8700	12000	0.101
2	0906/09195	19.05	49.225	19.05	14.288	18.034	40	39.1	8000	11000	0.18
3	LM11949/11910	19.05	45.237	16.637	12.065	15.494	28.6	28	8900	12000	0.132
4	3659 (ROLLER ASSEMBLY)	23.812	-	30.416	-	-	79	73	7000	9400	0.29
5	15100/15250	25.4	63.5	20.638	15.875	20.638	50.3	44.3	6000	8000	0.317
6	L 44649/44610	26.988	50.292	14.732	10.668	14.224	32.5	28	7500	10000	0.11
7	1985/1930	28.575	56.896	19.355	15.875	19.845	51.9	45.4	6700	9000	0.22
8	15590/15520	28.575	57.15	17.462	13.495	17.462	45.5	39.6	6700	8900	0.192
9	1988/1922	28.575	57.15	19.355	15.875	19.845	55.1	47.5	6700	9000	0.22
10	02872/02820	28.575	73.025	22.225	17.462	22.225	69.4	57.3	5300	7000	0.48
11	14118/14283	30	72.085	19.202	18.415	22.385	58.3	48.3	5600	7500	0.437
12	86649/86610	30.162	64.292	21.433	16.67	21.433	61	49.5	6000	8000	0.33
13	15120/15250	30.213	63.5			20.638
14	LM 67048/67010	31.75	59.131	16.764	11.811	15.875	41.5	34.9	6300	8500	0.18
15	15123/15245	31.75	62	19.05	14.288	18.161	57	48.5	6000	8000	0.245
16	2580/2520	31.75	66.421	25.357	20.638	25.4	81.5	69.3	5600	7500	0.4
17	3188S/3120	31.75	72.626	29.997	23.812	30.162	91.2	80.1	5500	7300	0.565
18	LM 48548/48520	34.925	65.088	18.288	13.97	18.034	57.4	47.2	5700	7600	0.27
19	25877/25821	34.925	73.025	24.608	19.05	23.812	88.1	72.6	5300	7100	0.47
20	2796/2729	34.925	76.2	25.654	19.05	23.775	91.2	73.2	5100	6800	0.54
21	31593/31520	34.925	76.2	28.575	23.812	29.37	97.5	80.5	5000	6700	0.628
22	JL 69349/310	38	63	17	13.5	17	52.6	39.2	5700	7600	0.2
23	3490/3420	38.1	79.375	29.771	23.812	29.37	114.3	92.9	4900	6600	0.67
24	HM 801346/10	38.1	82.55	28.575	23.02	29.37	115.5	88.5	4700	6200	0.755
25	25572/25520	38.1	82.931	25.4	19.05	23.813	98.2	76.5	4500	6000	0.64
26	418/414	38.1	88.5	29.083	22.225	26.988	114	101	4800	6300	0.835
27	2789/2729	39.688	76.2	25.654	19.05	23.775	91.2	73.2	5100	6800	0.47
28	4367/4335	39.688	90.488	40.386	33.338	39.688	174.9	136.1	4300	5800	1.28
29	344/332	40	80	22.403	17.826	21	75.1	68.3	4700	6300	0.47
30	JF 4049/4010	40	85	32.5	28	33	143	115.8	4600	6200	0.882
31	3879/3820	40	85.725	30.162	23.812	30.162	132.4	105	4500	6000	0.85
32	LM 501349 / LM 501310	41.275	73.431	19.812	14.732	19.558	55.5	69.5	5000	6600	0.34
33	24780 / 24720	41.275	76.2	23.02	17.462	22.225	86.9	68.4	4900	6500	0.43
34	336/332
35	3877/3820	41.275	85.725	30.162	23.812	30.162	132.4	105	4500	6000	0.792
36	3585/3525	41.275	87.312	30.866	23.812	30.162	117.1	94	4400	5900	0.78
37	HM 803149/803110	44.45	88.9	29.37	23.02	30.162	125	93.5	4300	5800	0.84
38	355X/352	44.45	90.119	21.692	21.808	23	89.5	76.1	4400	5800	0.68
39	HM 803149/HM 803112	44.45	88.9	29.37	23.02	30.162	125	93.5	4300	5800	0.84
40	3782/3720	44.45	93.264	30.302	23.812	30.162	148.9	110.9	4000	5300	0.95
41	33885/33822	44.45	95.25	28.575	22.225	27.783	137	105	4000	5300	0.99
42	HM 903249/903210	44.45	95.25	28.575	22.225	30.958	122	101	3600	4800	1.012
43	527/522	44.45	101.6	36.068	26.988	34.925	169	137.3	3800	5000	1.35
44	535/532A	44.45	111.125	36.957	30.162	38.1	191.2	149.3	3600	4800	1.885
45	U497/U460L	44.987	79.975	26	22	24	83.9	70.2	4500	6000	0.475
46	HM 905843/905810	44.987	104.986	31.75	23.368	32.512	147.1	110.2	3200	4300	1.37
47	LM 102949/102910	45.242	73.431	19.812	15.748	19.558	76	54	4800	6400	0.307
48	LM 603049/ 603011	45.242	77.788	19.842	15.08	19.842	70.3	55.3	5850	7500	0.37
49	HM 204049/204010	45.987	90.975	32	26.5	32	150.5	119.1	4300	5600	0.94
50	359-S/354X	46.038	85	21.692	17.462	20.635	89.5	76.1	4400	5800	0.49
51	369-S/362A	47.625	88.9	22.225	16.513	20.638	91	76.5	4300	5600	0.55
52	HM 804846/804810	47.625	95.25	29.37	23.02	30.162	140	104.3	4000	5300	0.98
53	386A/382A	47.625	96.838	21.946	15.875	21	102	80.9	3800	5000	0.73
54	528/522	47.625	101.6	36.068	26.988	34.925	169	137.3	3800	5000	1.29
55	536/532X	47.625	107.95	36.957	28.575	36.512	179.9	142.6	3600	4800	1.59
56	CK50K/3720	50	93.264	30.302	23.812	30.162	148.9	110.9	4000	5300	0.87
89	HM212047/212010	63.5	122.238	38.354	29.718	38.1	244	187	3100	4100	1.936
90	559/552A	63.5	123.825	36.678	30.162	38.1	221.5	161.5	3000	4100	1.979
91	565/562	63.5	129.985	34	28	37	206.1	177.2	2900	3800	2.06
92	6379/6320	65.088	135.755	56.007	44.45	53.975	356.5	265.2	2900	3800	3.662
93	33275/33462	69.85	117.475	30.163	23.813	30.163	175.7	116.3	3000	4000	1.248
94	47487/47420	69.85	120	32.545	26.195	32.545	228	154.1	3000	4000	1.5
95	566/563	69.85	127	36.17	28.575	36.512	254.7	176.6	2800	3800	1.945
96	643/632	69.85	136.525	41.275	31.75	41.275	261.2	194.4	2800	3800	2.67
97	47490/47420	71.438	120	32.545	26.195	32.545	218.1	149.1	3000	4000	1.42
98	576/572	73.025	139.992	36.098	28.575	36.512	261.7	174.6	2400	3200	2.47
99	HM 215249/215210	75.987	131.975	39	32	39	280.8	196.9	2600	3500	2.11
100	575/572	76.2	139.992	36.098	28.575	36.512	280	187	2400	3200	2.45
101	659/653	76.2	146.05	41.275	31.75	41.275	295.4	207.1	2500	3300	3
102	6461/6420	76.2	149.225	54.229	44.45	53.975	410.6	287.9	2400	3200	4.185
103	27687/27620	82.55	125.412	25.4	19.845	25.4	186	112	2600	3600	1.1
104	HM 516449 / 516410	82.55	133.35	39.688	32.545	39.688	304	179	2600	3500	2.13
105	495/493A	82.55	134.976	29.769	22.225	30.162	193	130.5	2600	3500	1.55
106	580/572	82.55	139.992	36.098	28.575	36.512	285.5	186.4	2400	3400	2.2
107	HM218248/218210	89.974	146.975	40	32.5	40	340.1	227.1	2400	3200	2.56
108	JM718149/718110	90	145	34	27	35	260	178	2400	3200	2.14
109	47890/47820	92.075	146.05	34.925	26.195	33.338	267.9	163.3	2400	3100	2.57
110	598A/592A	92.075	150	36.322	27	35.992	291.4	185.2	2000	3000	2.37
111	594/593A	95.25	150	36.322	27	35.992	291.4	185.2	2000	3000	2.2
112	594A/593X	95.25	150	36.322	27	35.992	291.4	185.2	2000	3000	2.26
113	683/672	95.25	168.275	41.275	30.162	41.275	350.8	226.7	2100	2800	3.72
114	37425/37625	107.95	158.75	21.438	15.875	23.02	166.2	101.1	2100	2800	1.4
