DWYER USA Analog Industrial Thermometer, Feature : High Accuracy, Light Weight

Industrial Thermometer

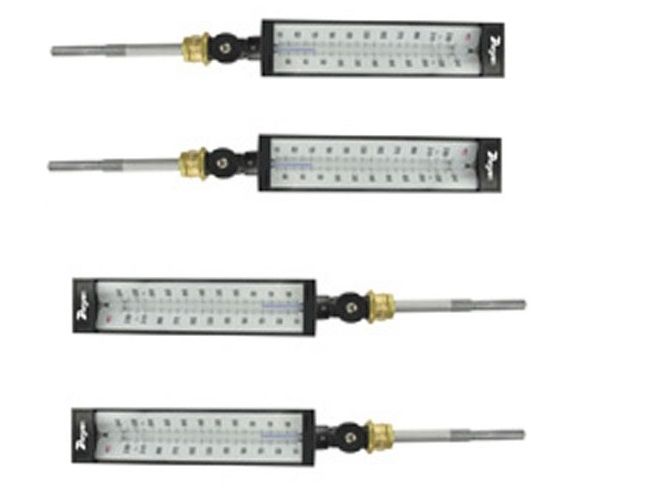

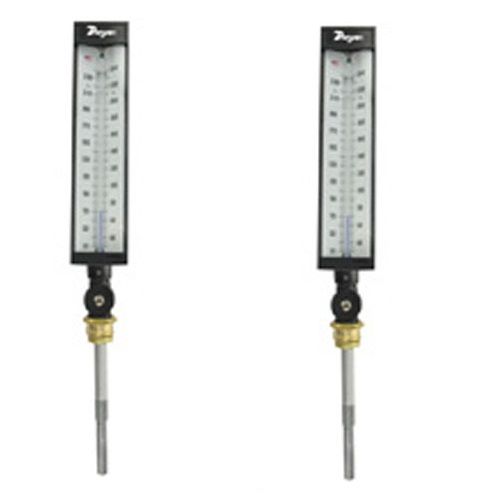

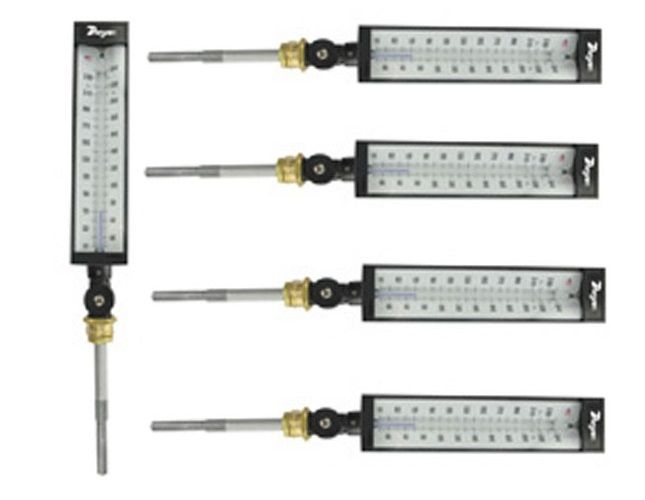

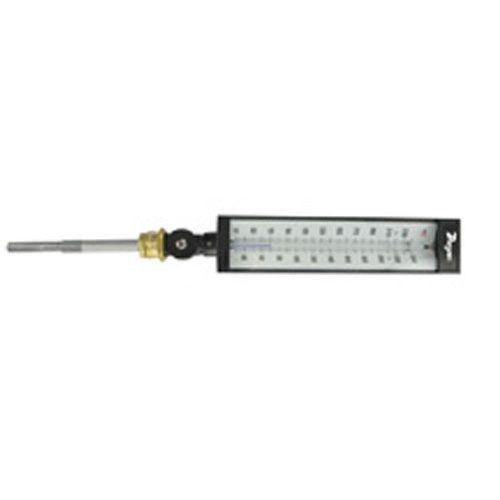

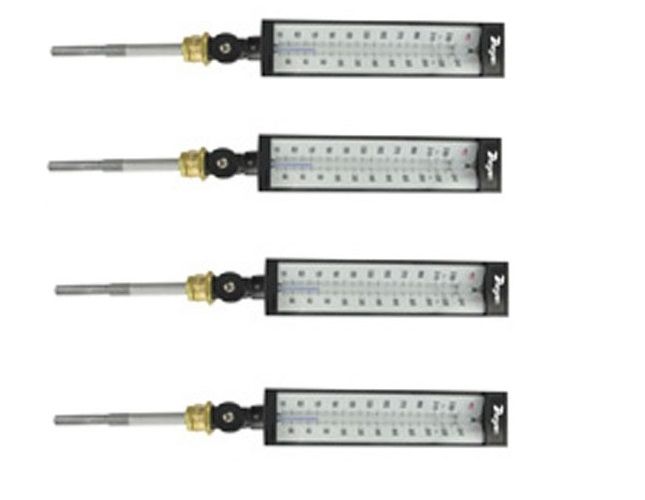

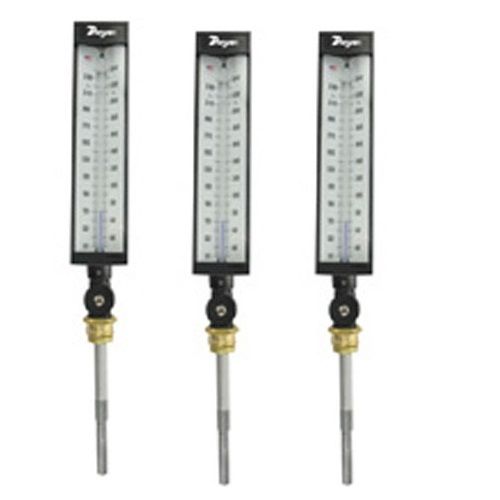

Series IT Industrial Thermometer

9" Scale, Adjustable Angle Stem

The Series IT Industrial Thermometer allows users to easily take accurate temperature measurements in any environment. The case of the IT series is made of die cast aluminum for extra durability in industrial environments. The glass lens is easily cleaned and resists scratches for better viewing of the scale. The stem can be adjusted 180° in order to achieve the best viewing angle. The blue organic fill is non-toxic and allows users to better see the temperature reading. The scales can be ordered with dual units, °F, or °C.

ModelDescription

• ITA9351DIndustrial thermometer, range -40 to 110°F (-40 to 40°C).
• ITA9352DIndustrial thermometer, range 0 to 120°F (-15 to 50°C).
• ITA9353DIndustrial thermometer, range 0 to 160°F (-15 to 70°C).
• ITA9354DIndustrial thermometer, range 30 to 180°F (0 to 80°C).
• ITA9355DIndustrial thermometer, range 30 to 240°F (0 to 115°C).
• ITA9356DIndustrial thermometer, range 30 to 300°F (0 to 150°C).
• ITA9357DIndustrial thermometer, range 50 to 400°F (10 to 205°C).
• ITA9358DIndustrial thermometer, range 100 to 550°F (40 to 300°C).
• ITA9601DIndustrial thermometer, range -40 to 110°F (-40 to 40°C).
• ITA9602DIndustrial thermometer, range 0 to 120°F (-15 to 50°C).
• ITA9603DIndustrial thermometer, range 0 to 160°F (-15 to 70°C).
• ITA9604DIndustrial thermometer, range 30 to 180°F (0 to 80°C).
• ITA9605DIndustrial thermometer, range 30 to 240°F (0 to 115°C).
• ITA9606DIndustrial thermometer, range 30 to 300°F (0 to 150°C).

Specifications

• Wetted Material:Tapered cast aluminum with graphite fill.
• Housing Material:Aluminum.
• Accuracy:1%.
• Lens:Glass.
• Scales:Aluminum painted white with black markings.
• Process Connection:1-1/4-18 NEF thread.
• Liquid Filling:Organic blue liquid filled tube.
• Mounting:Adjustable Stem: Vertical Plane 180°; Horizontal Plane 360°.
• Weight:1 lb 7 oz (0.65 kg).

Accessories

Model NumberDescription

• IT-W01Industrial thermometer thermowells, brass, 2-1/2" insertion length.
• IT-W04Industrial thermometer thermowells, brass, 5" insertion length.
• IT-W07Industrial thermometer thermowells, brass, 2-1/2" insertion length, 2-1/2" lag.
• IT-W14Industrial thermometer thermowells, 304SS, 5" insertion length.
• IT-W11Industrial thermometer thermowells, 304SS, 2-1/2" insertion length.
• IT-W17Industrial thermometer thermowells, 304SS, 2-1/2" insertion length, 2-1/2" lag.
• IT-W21Industrial thermometer thermowells, 316SS, 2-1/2" insertion length.
• IT-W24Industrial thermometer thermowells, 316SS, 5" insertion length.
• IT-W27Industrial thermometer thermowells, 316SS, 2-1/2" insertion length, 2-1/2" lag.
