Target Display Board

Get in touch with us, if you are looking for Target Display Board at economical rate. Our company is primarily engaged in exporting and supplying of Target Display Board. We are associated with trusted manufacturers who make use of supreme quality components such as metal, lights, wire etc. This Display Board is fabricated in compliance with international quality standards by skilled professionals. We can process bulk orders.
Benefits :

• Simultaneous display of programmed time-dependant Production Target achieved production and computed efficiency, to encourage workers to maximize output.
• The time dependant target is calculated by computing available production time, by subtracting all break times from the total shift time, entering the shift target and displaying the production that should have been achieved till that time.

Features:

• 5 shifts, each programmable with 3 breaks
• Dynamic target setting with target increasing at a user defined refresh rate
• Actual production input for constant comparison
• Multiplication and division factors for production input count
• Current efficiency of Actual production Vs Target displayed
• Real time clock display with Ni-Cd battery backup
• Special reject counter to monitor wastage
• Special remote switch panel to change settings
• Current status of production saved to prevent loss on power failure
• Cumulative total of actual production of up to 100 different products can be viewed
• RS-232 serial output to download the cumulative totals of each product

Specifications :

• 2 digits for Product Number
•  4 Digits for Real Time Clock (24 Hr mode)
•  4 Digits for Reject Counter
•  4 Digits for Actual production display
•  4 Digits for Target production display
•  7 Digit for Cumulative total (Also used for efficiency

• Shifts : 5 Nos each programmable with individual start and ending times

• Breaks : Each shift programmable with 3 breaks, each with individual start and

  ending times

• Refresh Rate : 0-999seconds for target display (Tac Time)

• Multiplication factor : 1-99 for actual production input

• Division Factor : 1-99 for actual production input

• Actual Counter I/p : +10V signal / potential free contact input

• Reject Counter I/p : Potential free input

• Number of Products : 0-99 each with separate cumulative (100 Nos)

• Reset : Terminals on display panel for Cumulative and Reject counters reset

• Previous shift data : Switch on panel to view final target, actual and efficiency of last shift

• Remote settings : Separate remote switch panel for configuring the display panel

• Serial Output : RS-232 output for downloading the total production and date of reset of

all 100 products

• Memory : EEPROM to save settings & current status on power failure

• Real Time Clock : Quartz controlled with battery backup

• Power Supply : 220V AC ± 15% @ 50/60Hz

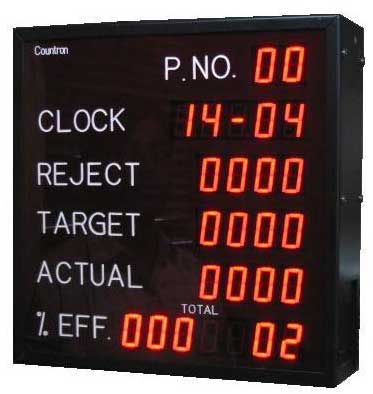

Front Panel Description :

•  P.No : Product Number of current product under production
• Clock : Real Time Clock (Hrs-Mins)
• Reject : A counter input displaying the number of units rejected. Potential free contact
•  provided as input for this counter
•  Target : Dynamic target displaying the instantaneous target to be achieved during Production
•  Actual : Represents the current number of units produced. Input from either +10V pulse signal or potential free contact
•  % Efficiency : Represents the percentage efficiency of production line (Actual/Target)*100

Terminal Diagram :

•  Reject Counter can be incremented by closing contact between Pins 1&2
• Actual Counter can be incremented by closing contact between Pins 2&3 OR by giving a 10V pulse signal between Pins 3&4
• Total count can be reset by shorting terminals 7&8
• Reject Counter can be reset by shorting terminals 9&10
• Serial RS-232 output is provided on terminals 11&12
