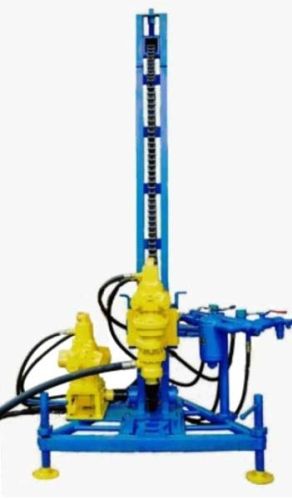

TASESA 01 4.5" Portable Drilling Machine

We offer our customers a wide range of tasesa portable drilling machine, which are available following
specifications :-
model: are-150 (portable)
title specifics
drill hole size 4 ½” (114.3mm)
maximum depth 152 meters (500 feet)
drill rod diameter length
drill rod dia 3” (76.2mm) length 1.5 meter.
Mast assembly
an 8-feet height sturdy mast support system frame capable of handling 5-feet drill rod with strong
tripod base bed to guide the drilling rod.
Operational motors
(for rotation & winch)
air-tech model 6hp rotation motor and 8hp winch motor included in rig unit for drilling operation.
Other major functional accessories
a 3-liter positive acting line lubricator for lubrication of pneumatic tools.
A 4-way steel valves & joystick for controlling air distribution.
A rollan make muscular chain (1.5”) for 1:2 reeving ratio.
A 10-meter coil hose.
Prime mover
for portable pneumatic through compressor air.
Suitable compressor (450 cfm @ 150 psi or 175 psi 600 cfm @ 200 psi)
for portable hydraulic through deck engine.
Suitable engine ( bhp 15)
supplier product code : tasesa 01
competitive advantages of the product
portable rig
easy and simple to carry and drill
effective
effective for shallow drilling
can be carried by man to nook and corner sites
