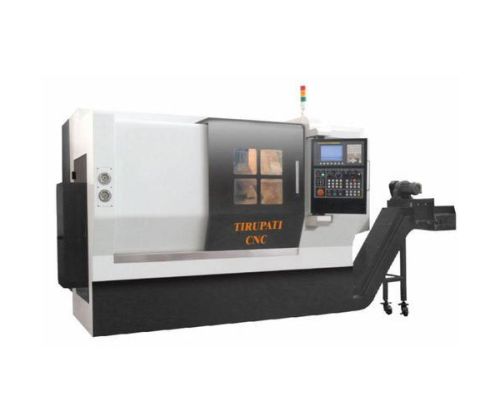

    TBX-300L CNC Slant Bed Turning Machine

    TBX-300L CNC Slant Bed Turning Machine

    Get Latest Price
    • CertificationCE Certified
    • Brand NameTCP
    • Power SourceElectric
    • ConditionNew
    • Supply TypeManufacturer, Exporter, Supplier, Trader
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Tirupati CNC Productsverified-icon
    location Veraval, Rajkot, Gujarat
    4.0/5fill iconfill iconfill iconfill icono icon(1)
    View Number
    • calendar Member Since 1 Year
    • building Nature of Business Manufacturer
    • gst icon GST No. 24AAIFT1112C1ZW

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Power SourceElectric
    • ConditionNew
    • ApplicationIndustrial
    • CertificationCE Certified
    • Number Of FlowerCNC
    • Country of OriginIndia
    • Brand NameTCP

    Features :

    • Small Foot Print
    • X ,Z Rapid Transverse 24 M/min
    • linear guideways On X and Z-Axis
    • C Axis Available
    • Full Splash Guard


    Optional Equipment :

    • Chip Conveyor
    • Bar Feeder
    • Bar Puller
    • Stabilizer
    • Hydraulic Collet Chuck
    • Auto Door


    Specifications

    CAPACITY
    SWING OVER BED500 mm
    MAXIMUM TURNING DIAMETER300 mm
    MAXIMUM TURNING LENGTH600 mm
    TRAVERSES
    X-AXIS STROKE150+25 mm
    Z-AXIS STROKE650 mm
    RAPID FEED RATE24 m/min
    BALLSCREW
    Z-AXIS32 mm x mm
    MOTOR TORQUE7 m/min
    X-AXIS32 mm x mm
    MOTOR TORQUE7 Nm
    LM BOTH AXIS35mm
    SPINDLE
    SPINDLE NOSEA2-6
    HOLE THROUGH SPINDLE63 mm
    MAXIMUN BAR CAPACITY51 mm
    SPINDLE MOTOR POWER7.5/11 KW/HP
    SPINDLE SPEED3500RPM
    FULL POWER SPEED50-2000 RPM
    CHUCK SIZE300mm
    TURRETBTP 80
    NO. OF STATION8 NOS
    TOOL SHANK25 mm
    MAX BORING BAR CAPACITY40mm
    ACCURACY
    POSITIONING ACCURACY0.01mm
    REPEATABILITY0.006mm
    TAILSTOCK
    TAILSTOCKYES
    GENERAL
    CONTROLLERSIEMENS / FANUC / MITSUBISHI
