TC-100 Vehicle Tracker Device, Feature : Easy To Use, Fast Working, Low Power Consumption, Speedy

Get Latest Price

Operating Temperature-10°C to +75°C
Supply Voltage9-90V
Brand NameAtlanta
ConditionNew
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Atlanta Systems Pvt. Ltd.

Connaught Place, Delhi

View Number

Member Since 2 Years
Nature of Business Manufacturer
Year of Establishment 1994

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

BandDual-Band GSM/GPRS/EDGE
Humidity5% to 95% non-condensing at +40°C
Brand NameAtlanta
Country of OriginIndia
Number Of FlowerVehicle Tracking Device
FeatureEasy To Use, Fast Working, Low Power Consumption, Speedy, Stable Performance
ConditionNew
Operating Temperature-10°C to +75°C
Supply Voltage9-90V
Horizontal Position Autonomous< 2.5m
Hot Start< 1sec
I/O'sDigtal Input: 2, Digtal Output: 1, Analog Input: 1
BluetoothBT5.0
Tracking Sensitivity-161dBm
GNSS & GPS AntennaInternal High Gain Antenna
PeripheralTemperature Sensor, Fuel Sensor
SMSPoint to Point MO & MT, SMS cell broadcast
Re acquisition Sensitivity-146dBm
Cold Start< 35sec
Indicators3 LED's (Power, GSM, GPS)
GNSSGPS, GLONASS, BeiDou
Warm Start< 30sec
Battery120mAh Li-Po 3.7V
SIMMicro SIM
Channels22 Tracking/ 66 Acquisition Channel
USB2.0 Micro USB
Working CurrentSleep Mode < 25mA, Active Mode < 200mA
Memory32Mb
Coding SchemeCS 1, 2, 3, 4
2 DRMS, Vertical± 5m
RF PowerClass 4 (2W@850/ 900MHz), Class 1 (1W@1800/ 1900MHz)
SBASSupported
Velocity< 0.1m/s

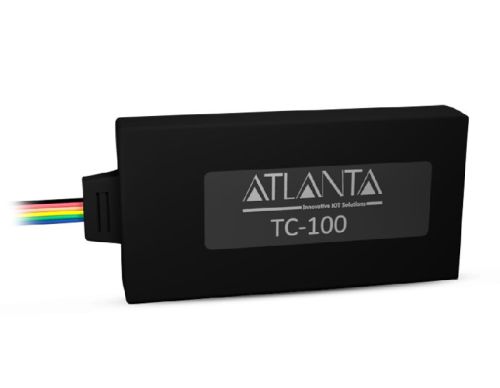

TC-100 is an intelligent vehicle tracking device with internal high-gain GPS & GSM antennas and integrated credible battery backup. It is also equipped with 2 Digital inputs and 1 Digital Output to cover the overall requirements of the users. 1 ADC input helps in connecting the different analog sensors.
