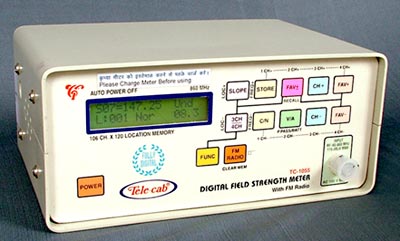

CCIR PAL BG E2 – E69 (106 Channels )
106 channels. Two lines alphanumeric LCD display with backlight. Latest state of the art flash micro controller from Motorola. Low component count. More reliable and less failure.
Accuracy ± 1.4 dB has been achieved with sophisticated instruments of hewlett Packard (hp).
Fine tuning for each channel in steps of 50 KHz. Digital PLL Synthesized tuner.
Error correction for individual channels with and without Attenuator. No need for correction chart.
Single switch audio selection. Audio output on speaker in audio mode.
No need for Attenuator selection. Built in Attenuator provides reading from 35 dBµV to 115 dBµV.
Digital display of R.F. signal in dBµV
Measurements of Battery Voltage
Continuous measurements Power Pass Reading (in AC voltage).
5- Fm Radio channels (Each 88 Mhz - 108 Mhz tuneable)
Channel number with accurate frequency and mode (audiovideo) & Audio Video difference also displayed

CCIR PAL BG E2 – E69 (106 Channels )
106 channels. Two lines alphanumeric LCD display with backlight. Latest state of the art flash micro controller from Motorola. Low component count. More reliable and less failure.
Accuracy ± 1.4 dB has been achieved with sophisticated instruments of hewlett Packard (hp).
Fine tuning for each channel in steps of 50 KHz. Digital PLL Synthesized tuner.
Error correction for individual channels with and without Attenuator. No need for correction chart.
Single switch audio selection. Audio output on speaker in audio mode.
No need for Attenuator selection. Built in Attenuator provides reading from 35 dBµV to 115 dBµV.
Digital display of R.F. signal in dBµV
Measurements of Battery Voltage
Continuous measurements Power Pass Reading (in AC voltage).
5- Fm Radio channels (Each 88 Mhz - 108 Mhz tuneable)
Channel number with accurate frequency and mode (audiovideo) & Audio Video difference also displayed
