Contact SupplierProgrammable spin coater

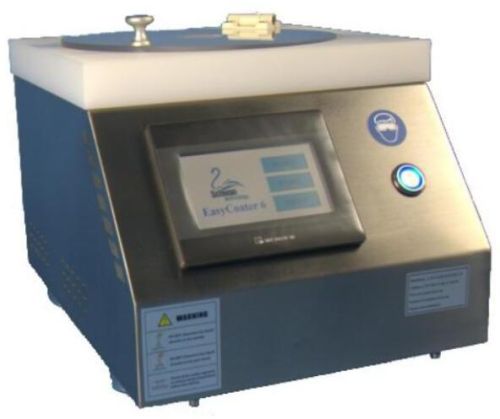

description: this easycoater tch-sc-6 is a compact programmable spin coater. It can store up to 10 spin programs and each program has up to 10 steps. All relevant run parameters including spin speed, acceleration, spin time, and auto dispense can easily be set with the touch screen.
mode tch-sc-6
max. Spin speed 12,000 rpm
spin speed resolution 1 rpm
max. Spin time 3,000 seconds
spin time resolution 0.1 seconds
max. Acceleration 30,000rpms
dimensions 10� h * 10� w *14� d
weight 25 lbs
power input 120vac, 1 phase, 500va (110v model)
230vac, 1 phase, 500va (220v model)
vacuum input (required) 18� to 25� hg, at least 0.5 cfm flow rare
vacuum port 316� od outlet at rear of the machine
vacuum pump included
drain port 58� od outlet at the rear of the machine
fuse 1 10 amp ( installed)
fuse 2 10 amp ( installed)
