415v V-belt Or Geared Tcp-h-200l Cnc Lathe Machine, For Industrial

Listing ID #7311372

  • MOQ 1 Piece
  • Driven TypeV-belt Or Geared
  • Country of OriginIndia
  • Voltage415V
  • Brand NameTCP
  • Supply Type Exporter, Supplier, Trader
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 1 Year
  • Nature of Business Manufacturer
  • GST No. 24AAIFT1112C1ZW

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Driven Type V-belt Or Geared
  • Country of Origin India
  • Voltage 415V
  • Brand Name TCP
  • Usage/Application Industrial
  • Type CNC

Optional Equipments :

  • Hollow Chuck (hydraulic / Pneumatic / Manual)
  • Turning Length as per Requirement.
  • 8 / 12 Station Turret
  • Lm Guideways Available
  • Servo Motor in Spindle
  • Stabilizer
  • Steady Rest (manual / Hydraulic)
  • External & Internal Grinding Attachment


Specifications

CAPACITY
MAXIMUM TURNING DIAMETER 200 mm
STANDARD TURNING DIAMETER 150 mm
TURNING LENGTH 300 mm To 1000mm
WIDTH OF BED 275 mm
HEIGHT OF CENTER 215 mm
SPINDLE
SPINDLE NOSE A2-5
MAX. BAR CAPACITY(In Hollow Chuck) 25 mm
SPINDLE SPEED (MAX.) 1500 RPM
SPINDLE MOTOR POWER 7.5HP
STANDARD POWER CHUCK SIZE 200 X 3 JAW (CLOSED CHUCK)
AXIS
X-AXIS STROKE 100 mm
X-AXIS RAPID 8 m/min
X-AXIS GUIDEWAYS BOX TYPE
Z-AXIS STROKE 300 mm To 1000mm
Z-AXIS RAPID 8 m/min
Z-AXIS GUIDEWAYS HARDENED AND GROUND
TOOLING
TURRET MAKE PRAGATI
NO. OF STATION 4
MAXIMUM BORING BAR DIAMETER 32 mm
TURNING TOOL SIZE 25X25 mm
LUBRICATION SYSTEM AUTO
TAILSTOCK Optional
TAILSTOCK QUILL TRAVEL 100 mm
TAILSTOCK QUILL DIAMETER 50 mm
TAILSTOCK QUILL TAPER MT-4
CONTROLLER SIEMENS / FANUC / MITSUBISHI
BASE TYPE SHIMOGA
ACCURACY 0.05
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Product Images

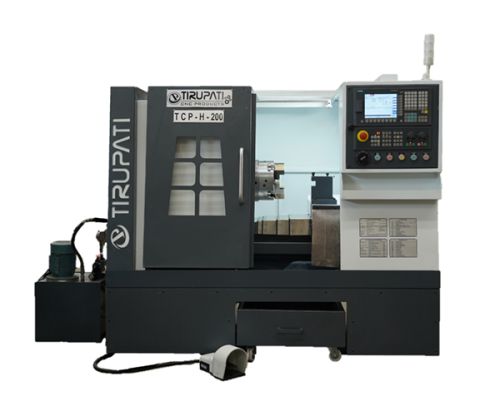

  • TCP-H-200L CNC Lathe Machine
  • TCP-H-200L CNC Lathe Machine

Company Details close-icon

Tirupati CNC Products, your trusted destination for precision engineering solutions. Since our inception in 1988, we have been at the forefront of manufacturing, exporting, supplying, and trading a wide range of cutting-edge machinery, including CNC Lathe Machines, CNC Slant Bed Turning Machines, VMC Drilling Machines, Conventional Lathe Machines, and CNC Drilling Machines.
Founded by the visionary duo of Mr. Jignesh and Dhawal Bhai Sojitra, Tirupati CNC Products has evolved into a reputed entity known for its commitment to quality, innovation, and customer satisfaction. With our headquarters situated in Rajkot, Gujarat, we have established ourselves as a prominent player in the industry, serving diverse sectors such as automotive, aerospace, medical, and more.
At Tirupati CNC Products, we pride ourselves on our state-of-the-art manufacturing facilities, equipped with advanced machinery and operated by a skilled workforce. Our relentless pursuit of excellence drives us to continually upgrade our technology and processes, ensuring that we deliver products of the highest standards.
What sets us apart is our relentless focus on customer-centricity. We understand the unique requirements of each client and strive to provide tailored solutions that meet their specific needs. Whether it\'s a customized CNC machining solution or a standard machine from our catalog, we aim to exceed expectations in terms of performance, reliability, and efficiency.
Transparency, integrity, and professionalism are the cornerstones of our business ethos. We believe in fostering long-term relationships with our clients, built on trust and mutual respect. Our dedicated team works tirelessly to provide comprehensive support, from pre-sales consultation to after-sales service, ensuring a seamless experience throughout the customer journey.


  • Nature of Business Manufacturer / Exporter / Service Provider / Supplier / Trader
  • Number of Employees 50 - 100
  • Year of Establishment 1988
